SIEMENS 3NA6 240-6 690V 200A

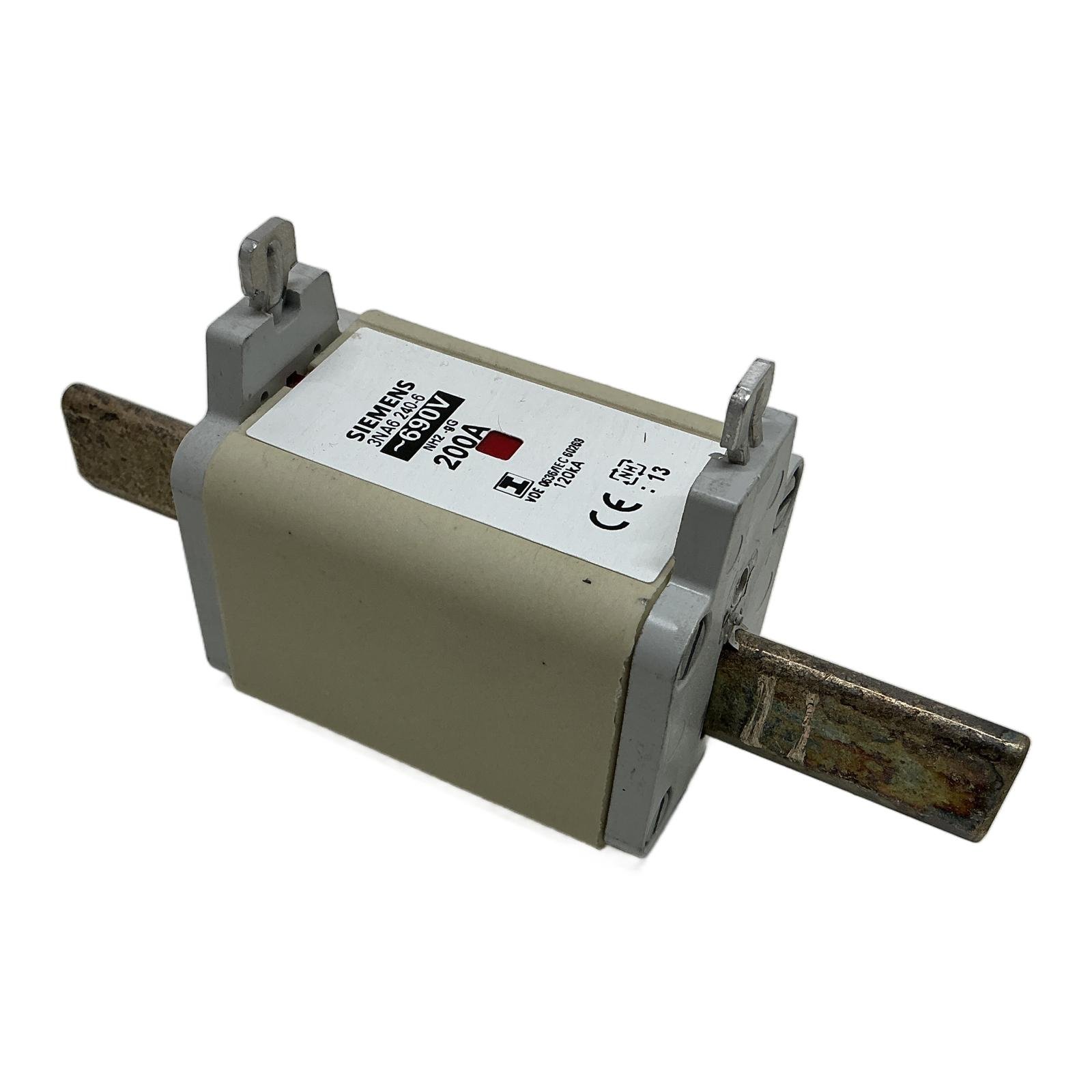

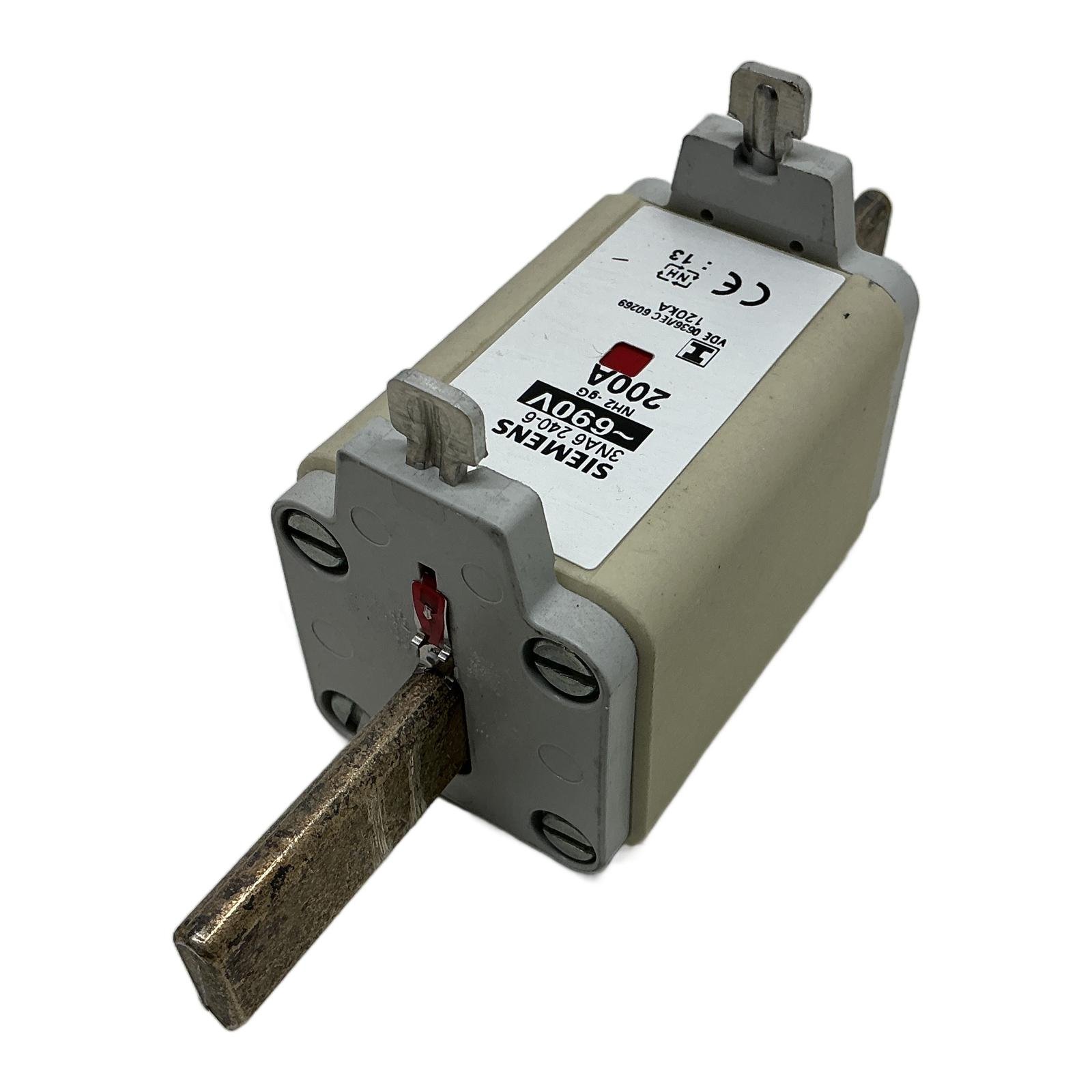

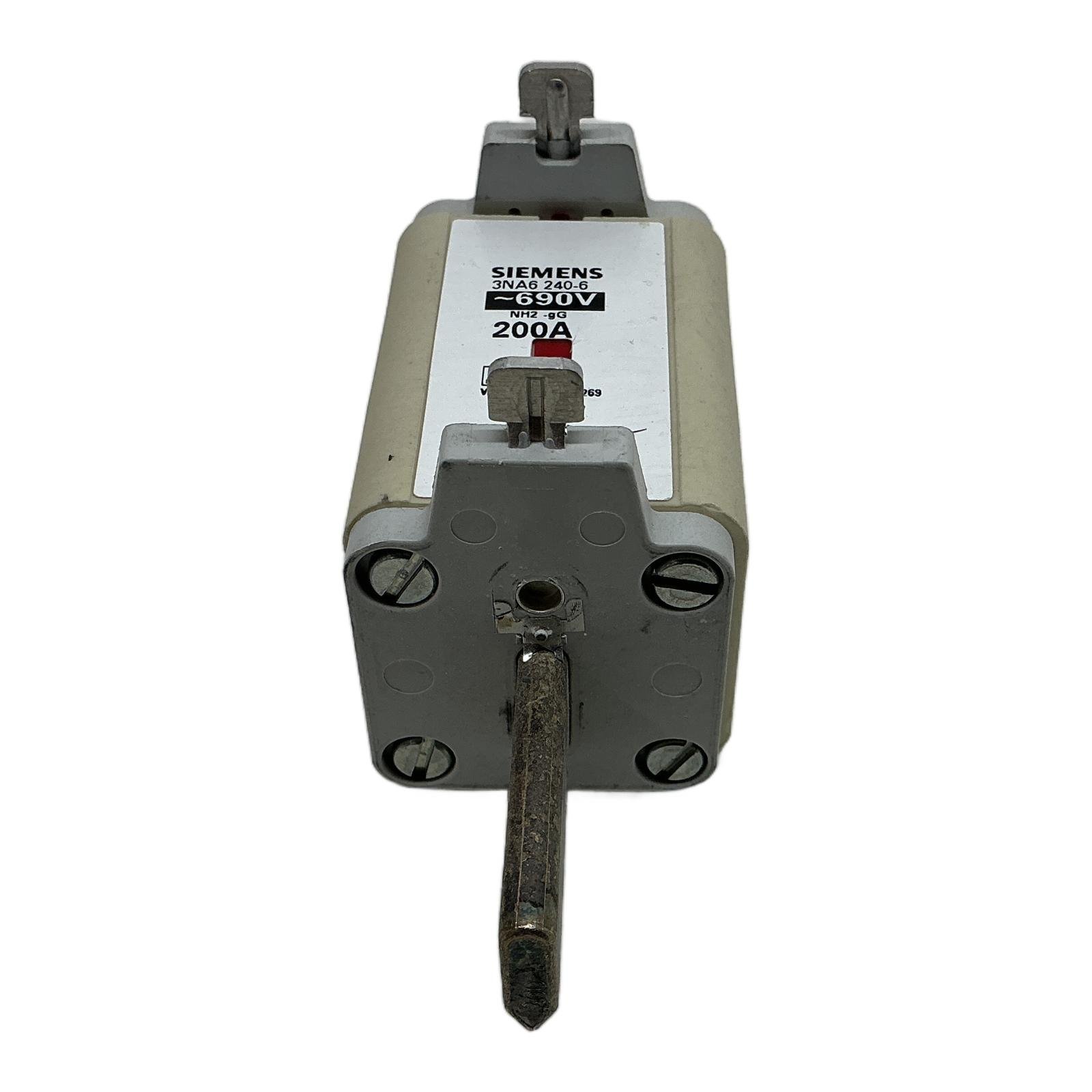

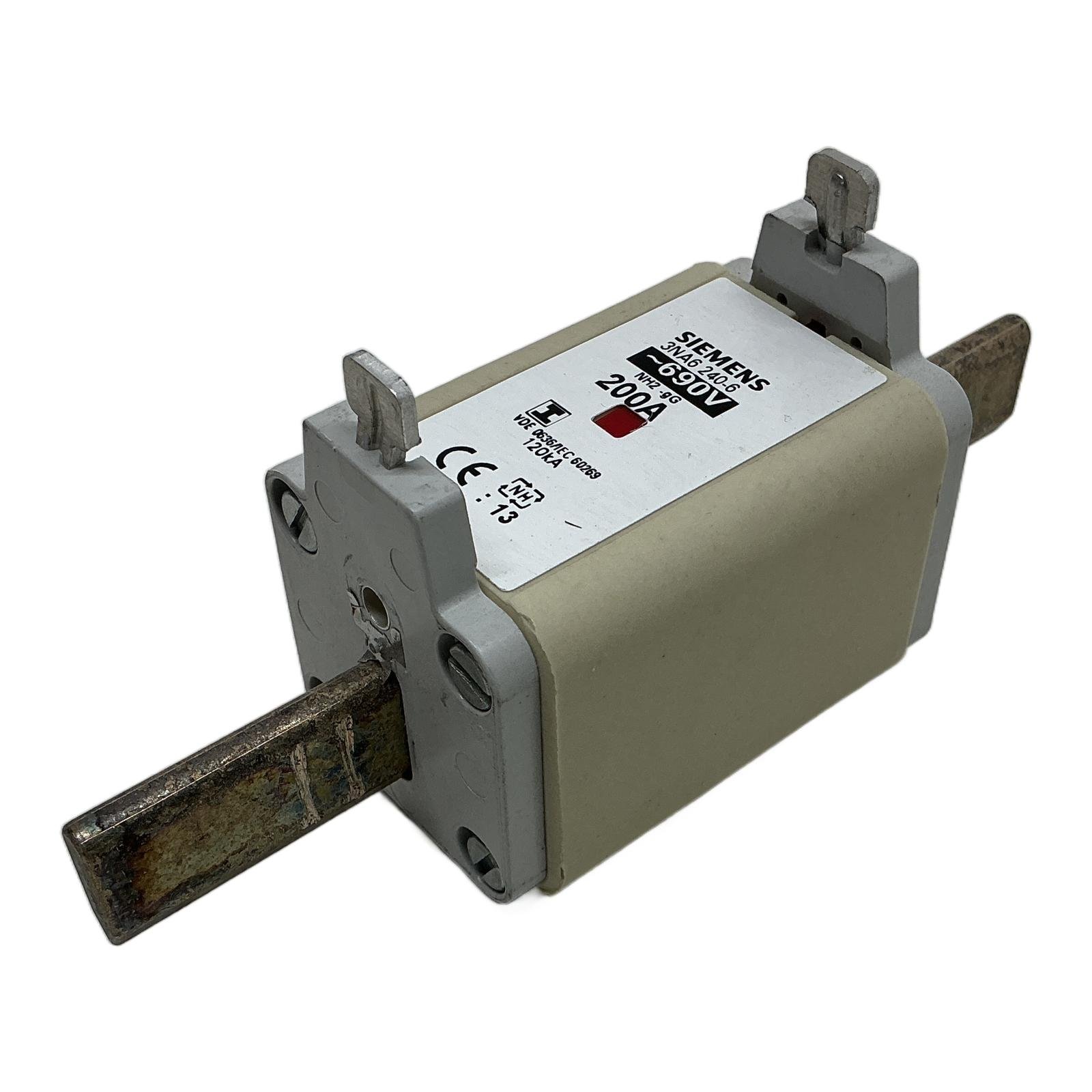

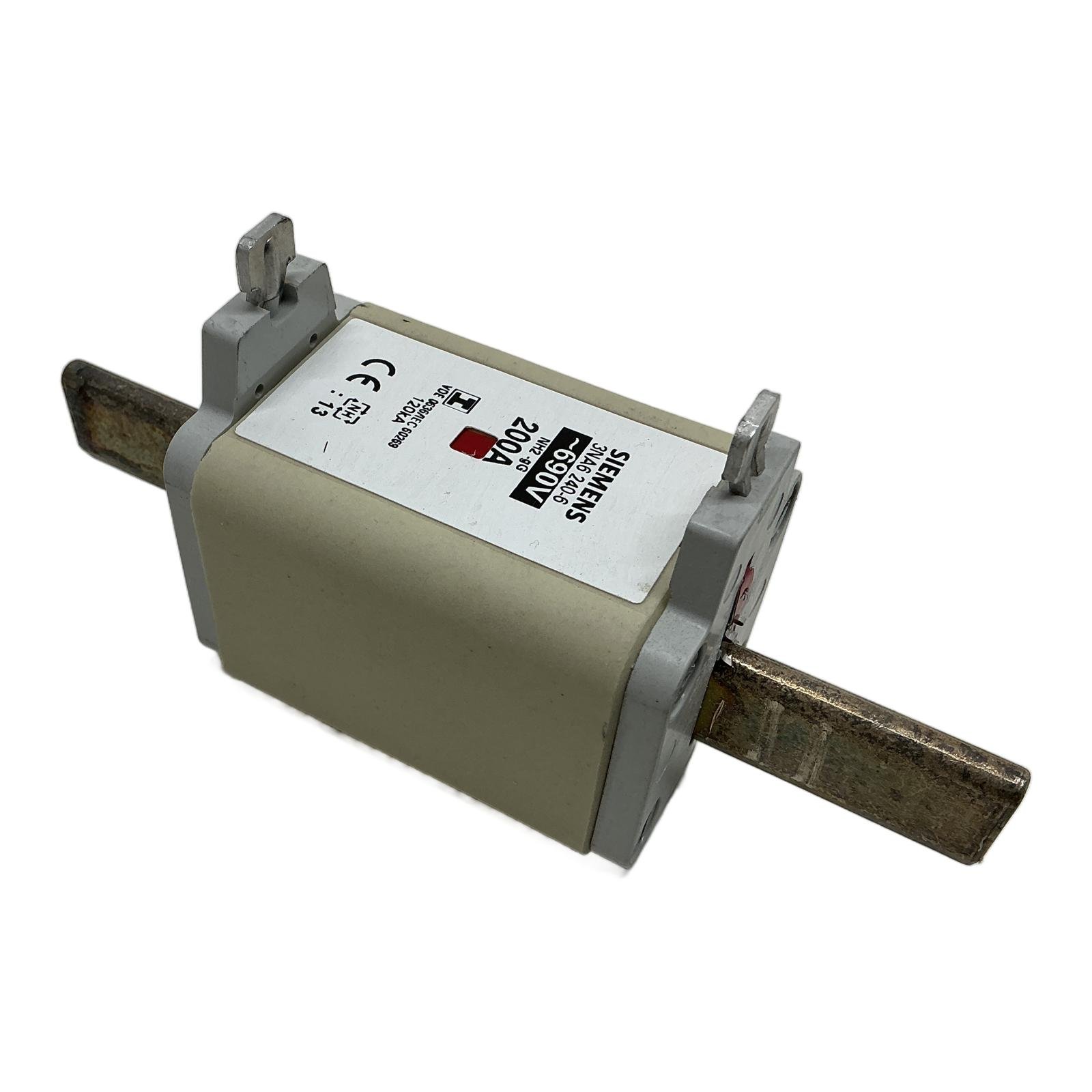

Siemens 3NA6 240-6 LV HRC Fuse Link Description The Siemens 3NA6 240-6 is a high-quality LV HRC (Low Voltage High Rupturing Capacity) fuse link from the SENTRON series. It is designed to provide dependable overcurrent protection for industrial installations, cables, and lines. With a rated current of 200A and a rated voltage of 690V AC, this fuse is suitable for demanding applications. Its gG characteristic makes it ideal for general-purpose protection, and the built-in front indicator allows for quick identification of a blown fuse. Specifications Manufacturer: Siemens Type Number: 3NA6 240-6 Rated Current (In): 200 A Rated Voltage (Un): 690V AC / 440V DC Fuse System / Size: NH2 Operating Class: gG Breaking Capacity: 120 kA Indicator: Front indicator Standards: VDE 0636/21, IEC/EN 60269 Label Info Siemens 3NA6 240-6 ~690V 200A 120kA gG Application This fuse link is commonly used in industrial switchgear, power distribution boards, and motor control centers to protect against short circuits and overloads. Country of Origin Made in Greece (GR). CO2 Impact Opting for this component helps avoid 10.6 kg of CO2 emissions compared to a new production, supporting sustainable industrial practices. Availability This item is an obsolete part but is available from our stock. Order now from profideals for expert support and fast delivery. FAQ What does the ‘gG’ characteristic signify for this fuse?The ‘gG’ classification indicates a general-purpose fuse link intended for cable and line protection. It can interrupt currents from the smallest melting current up to its maximum breaking capacity. Is this 3NA6 240-6 fuse suitable for protecting semiconductor devices?No, ‘gG’ fuses are generally too slow to protect sensitive semiconductors like thyristors or IGBTs. For such applications, a fuse with a ‘gR’ or ‘aR’ (semiconductor protection) characteristic is required. What does the red pin indicator on the front mean?The red pin is a trip indicator. If the fuse blows due to an overcurrent or short circuit, this pin pops out. This provides a clear visual signal of the faulty fuse and can also be used to actuate a microswitch for remote signaling in a compatible fuse base. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
