TIMKEN 30204M 90KM1

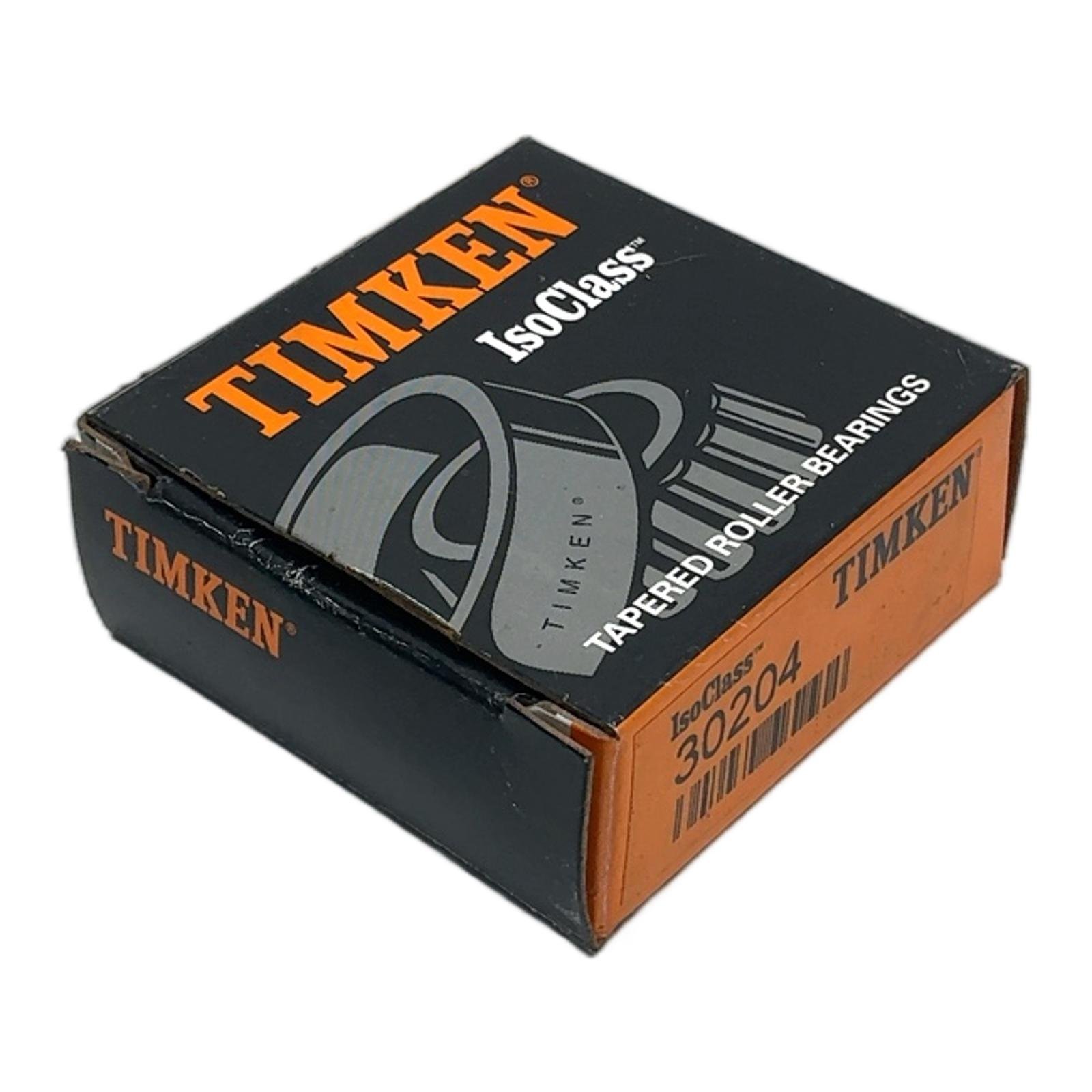

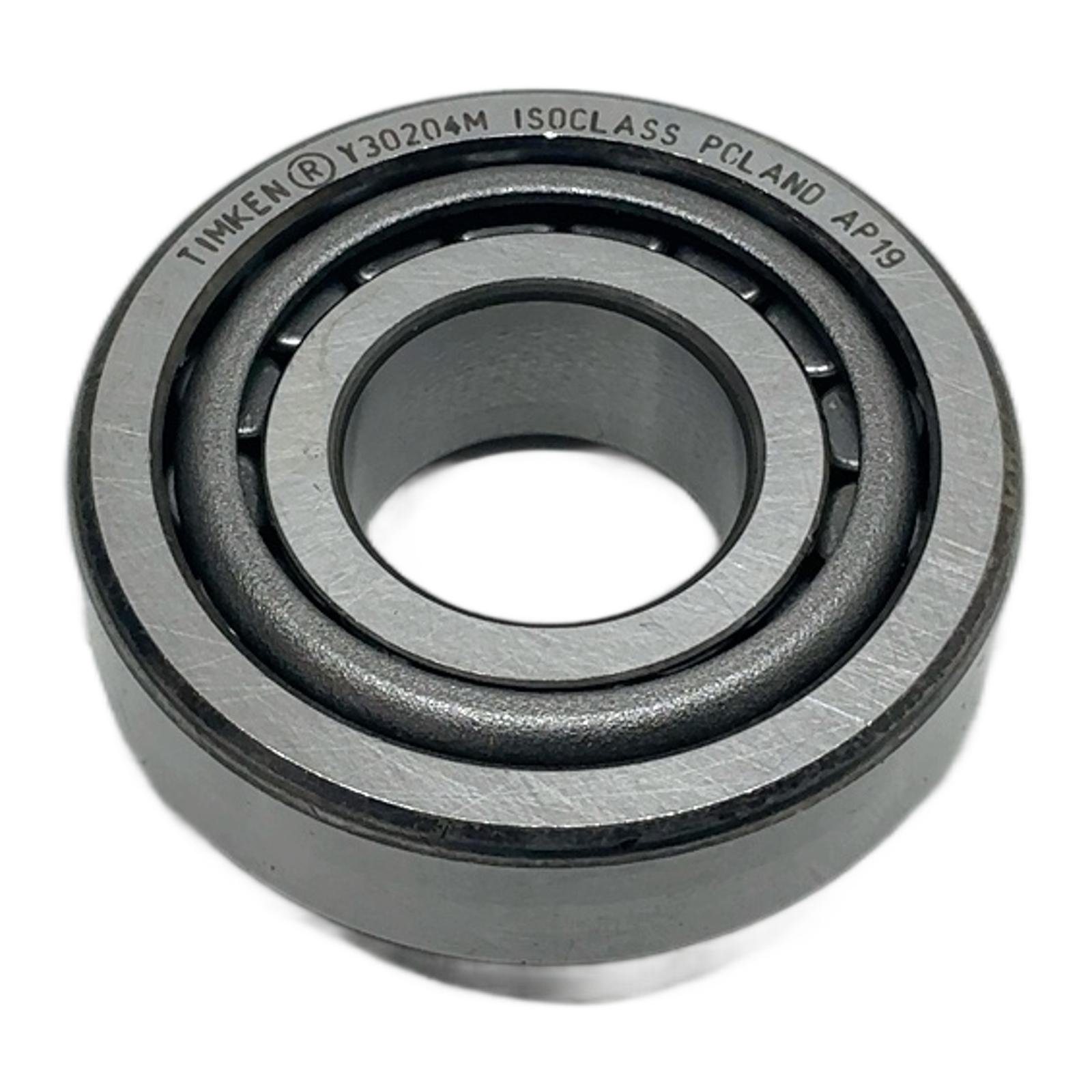

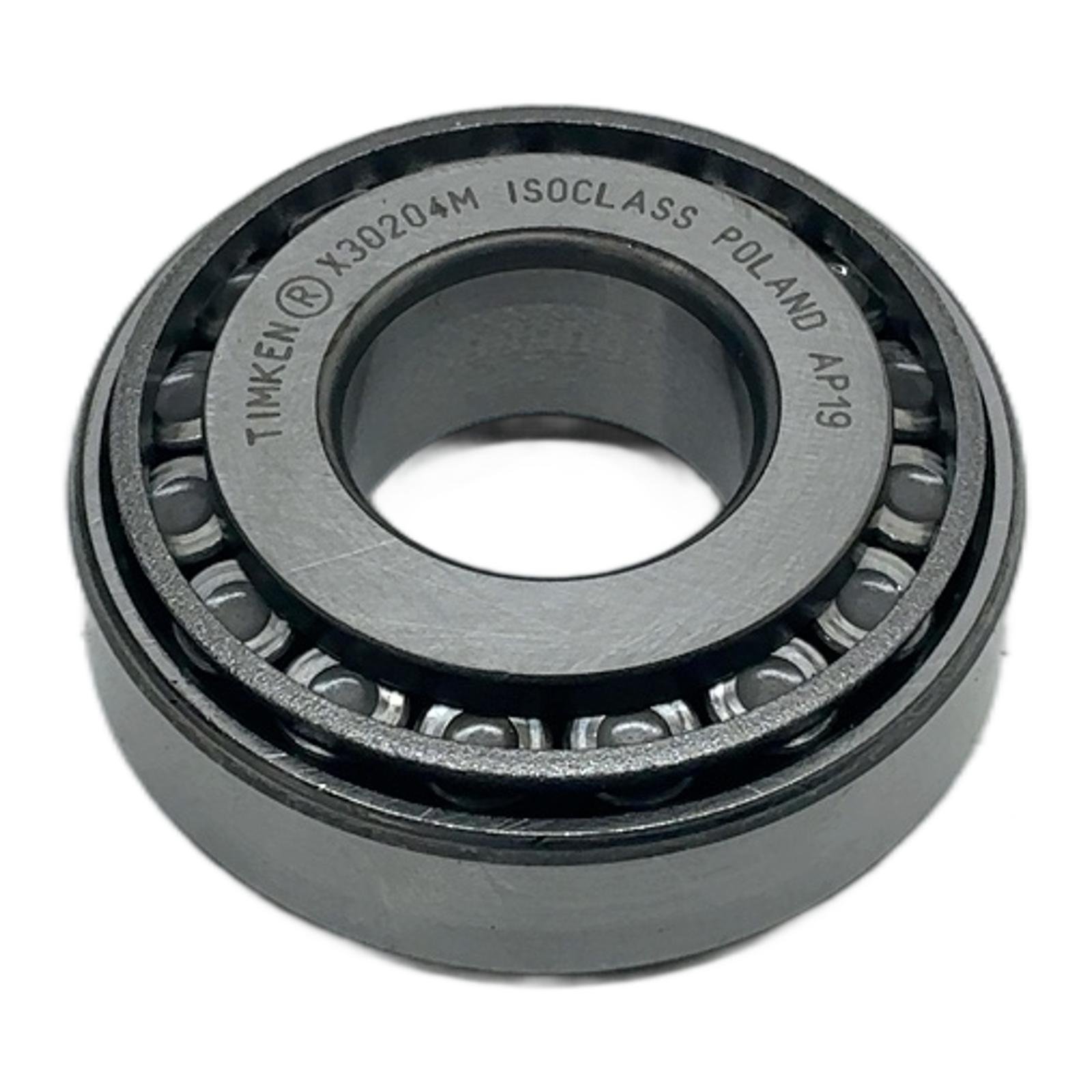

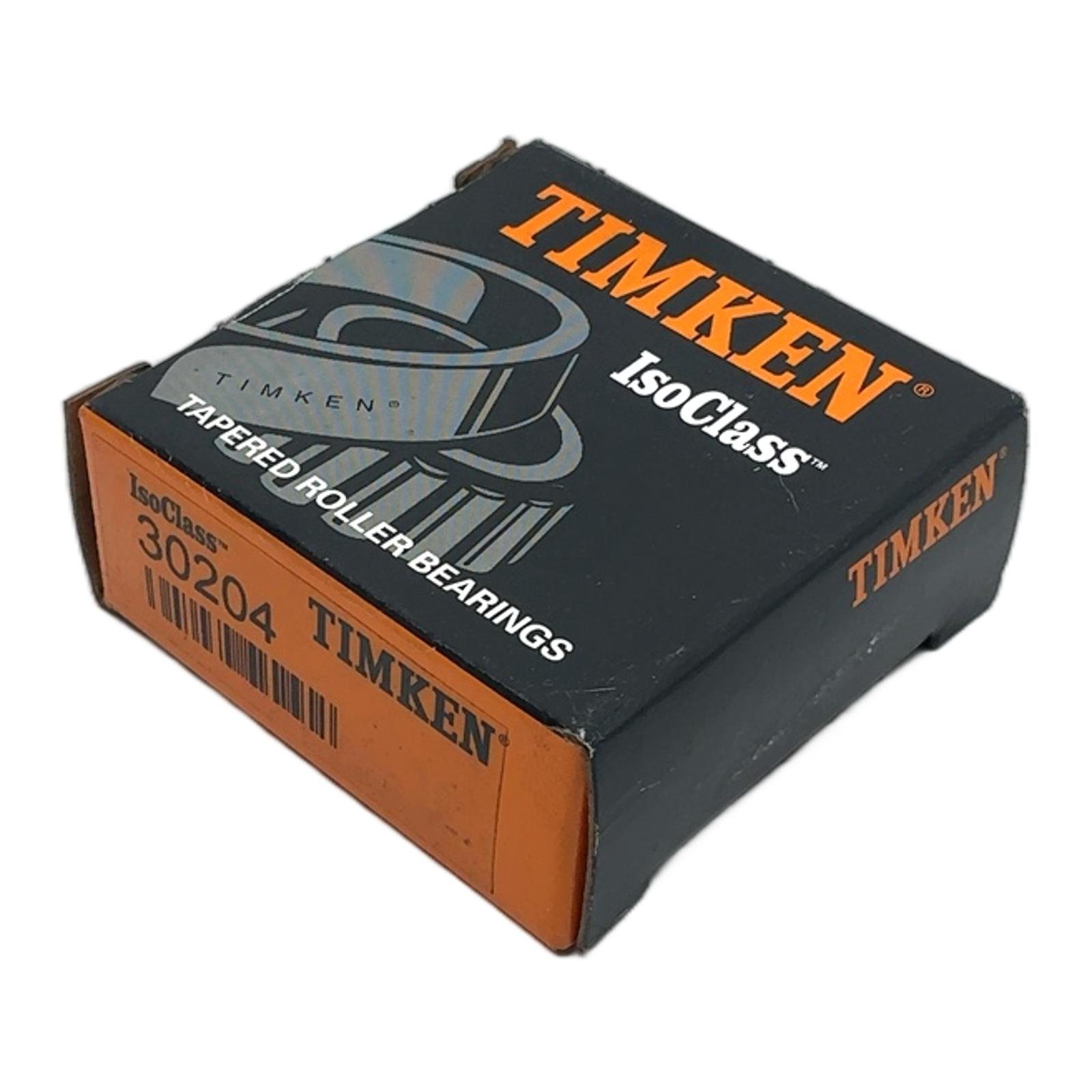

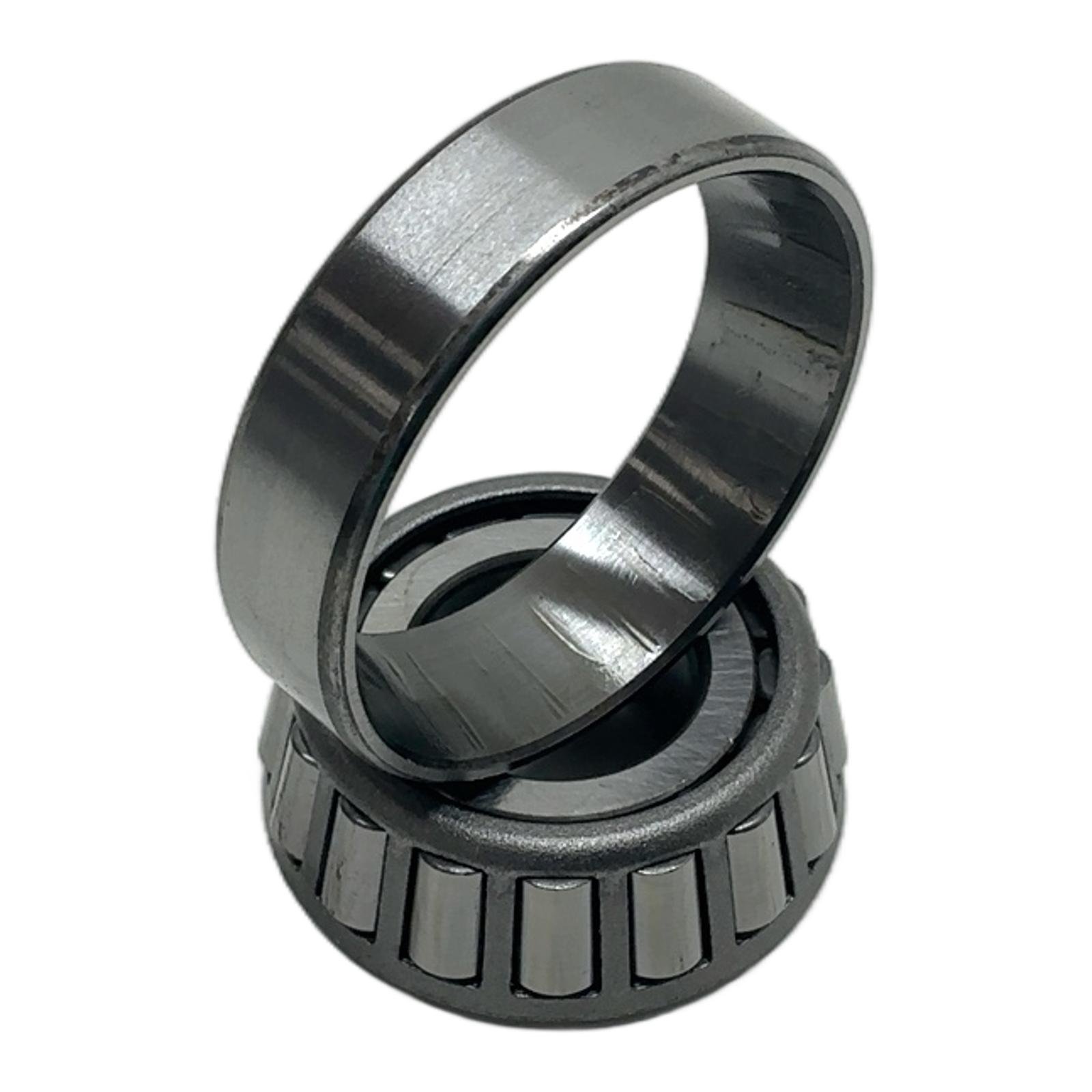

Timken 30204M-90KM1 Tapered Roller Bearing Description This is a Timken 30204M-90KM1, a single-row tapered roller bearing from the IsoClass series. Engineered to handle both radial and axial loads, these bearings are ideal for a wide range of industrial and automotive applications. The separable design allows the cone (inner ring with rollers) and cup (outer ring) to be mounted separately, simplifying installation and maintenance procedures. This particular model features a machined brass cage for enhanced durability. Specifications Manufacturer: Timken Part Number: 30204M-90KM1 Type: Tapered Roller Bearing Rows: Single Row Inner Diameter: 20 mm Outer Diameter: 47 mm Total Width: 15.25 mm Cage Material: Machined Brass (indicated by ‘M’ suffix) Label Info Cone Marking: X30204M Box Part Number: 30204M-90KM1 EAN: 053893430706 Application Commonly used in vehicle transmissions, gearboxes, wheel hubs, and various industrial machinery requiring robust load management and precise rotational control. Country of Origin Made in Poland. CO2 Impact Opting for this component saves approximately 0.24 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable industrial practice. Availability In stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does the ‘M’ suffix in 30204M signify? The ‘M’ suffix in Timken’s nomenclature typically indicates a machined brass cage. This type of cage offers superior strength and performance in applications with high speeds, heavy loads, or significant vibration compared to a standard stamped steel cage. Is this bearing pre-lubricated? No, tapered roller bearings like the 30204M are typically shipped with a light preservative oil to prevent corrosion. They are not pre-greased. The end-user must apply the appropriate grease or oil lubrication based on the specific application’s speed, load, and temperature requirements during installation. Can the cone (X30204M) and cup be purchased separately? Yes, one of the key features of tapered roller bearings is their separability. The cone assembly (inner ring, rollers, cage) and the cup (outer ring) can be mounted independently. Timken sells these components under separate part numbers, but the 30204M-90KM1 part number represents a complete, matched set. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: March 13, 2026
