NORGREN 2622200

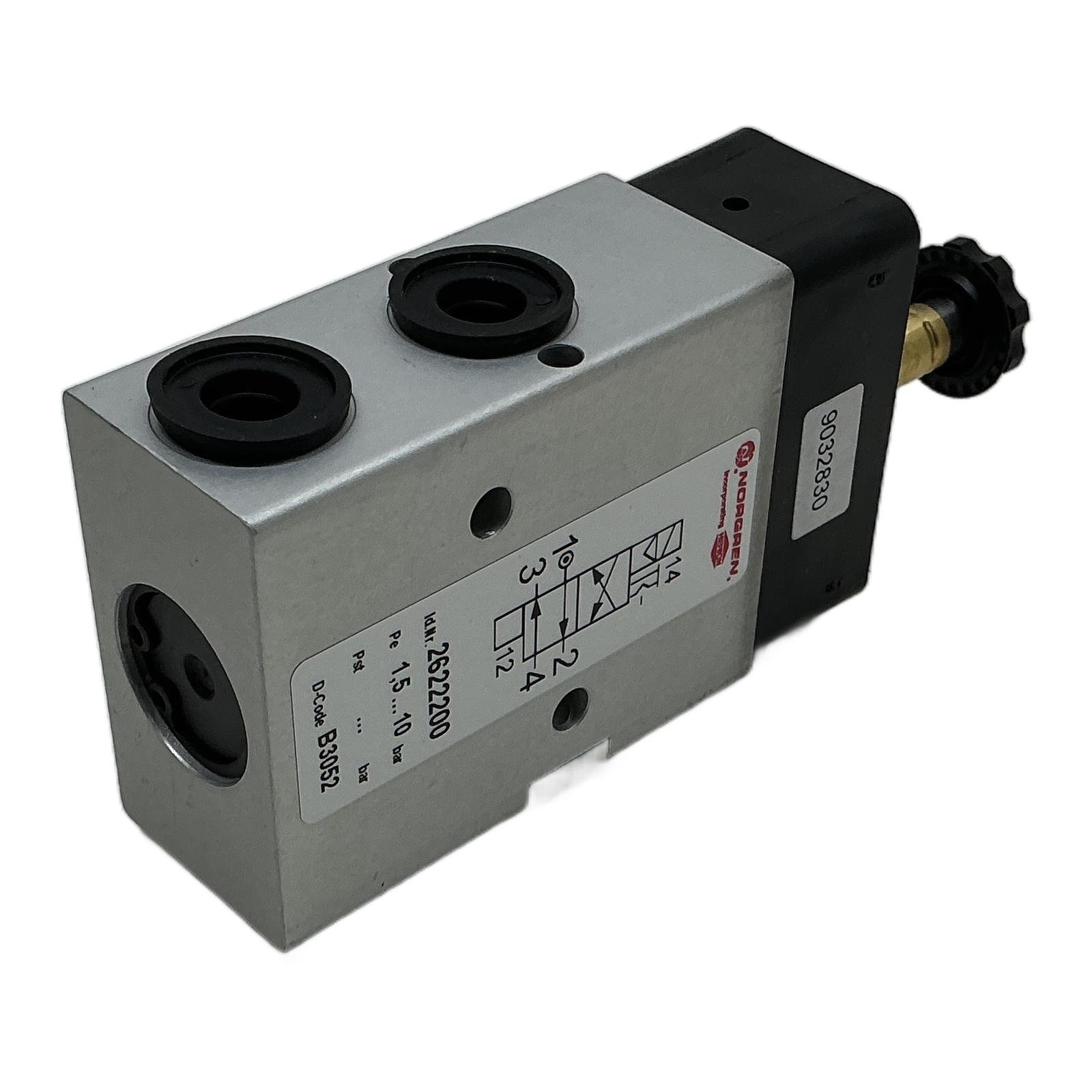

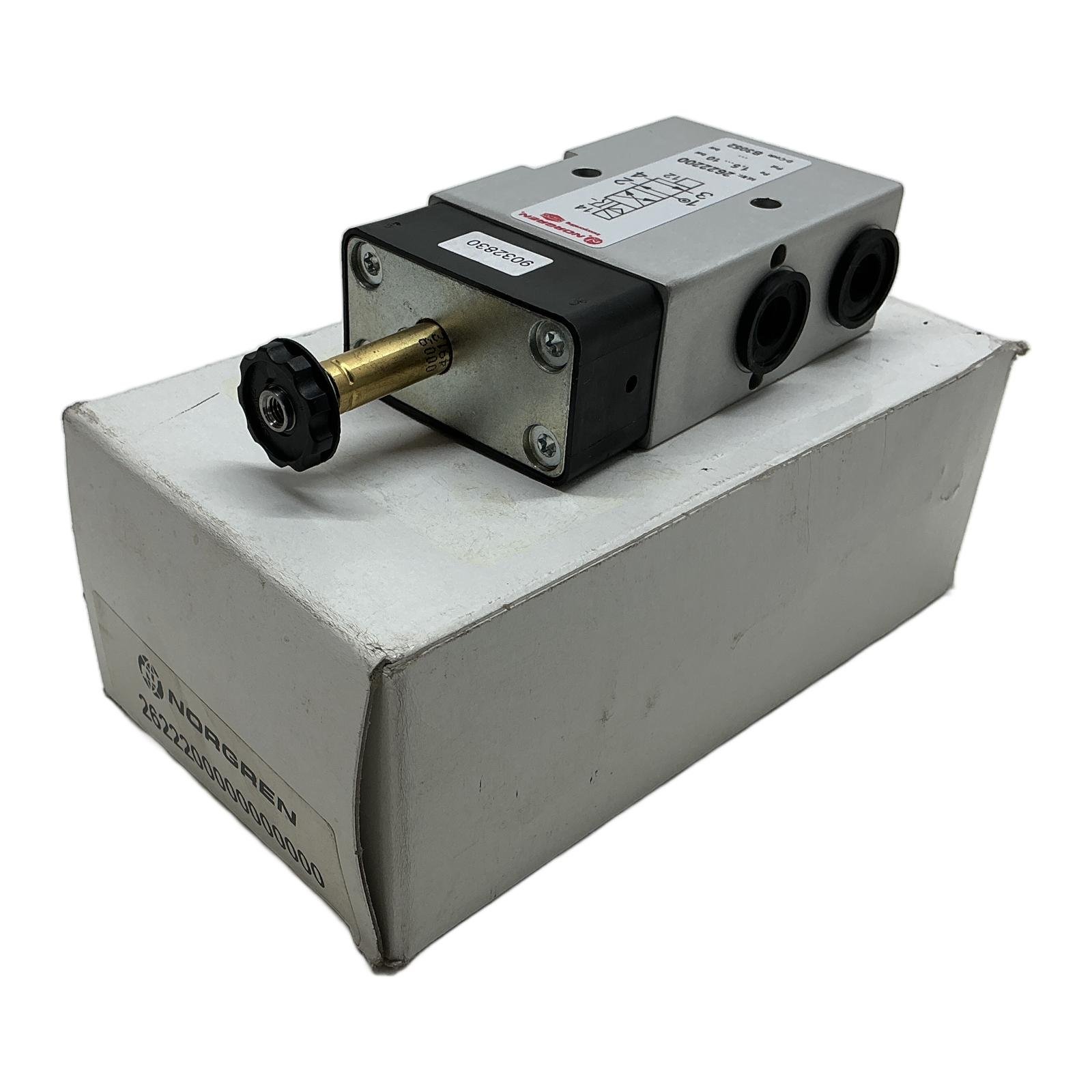

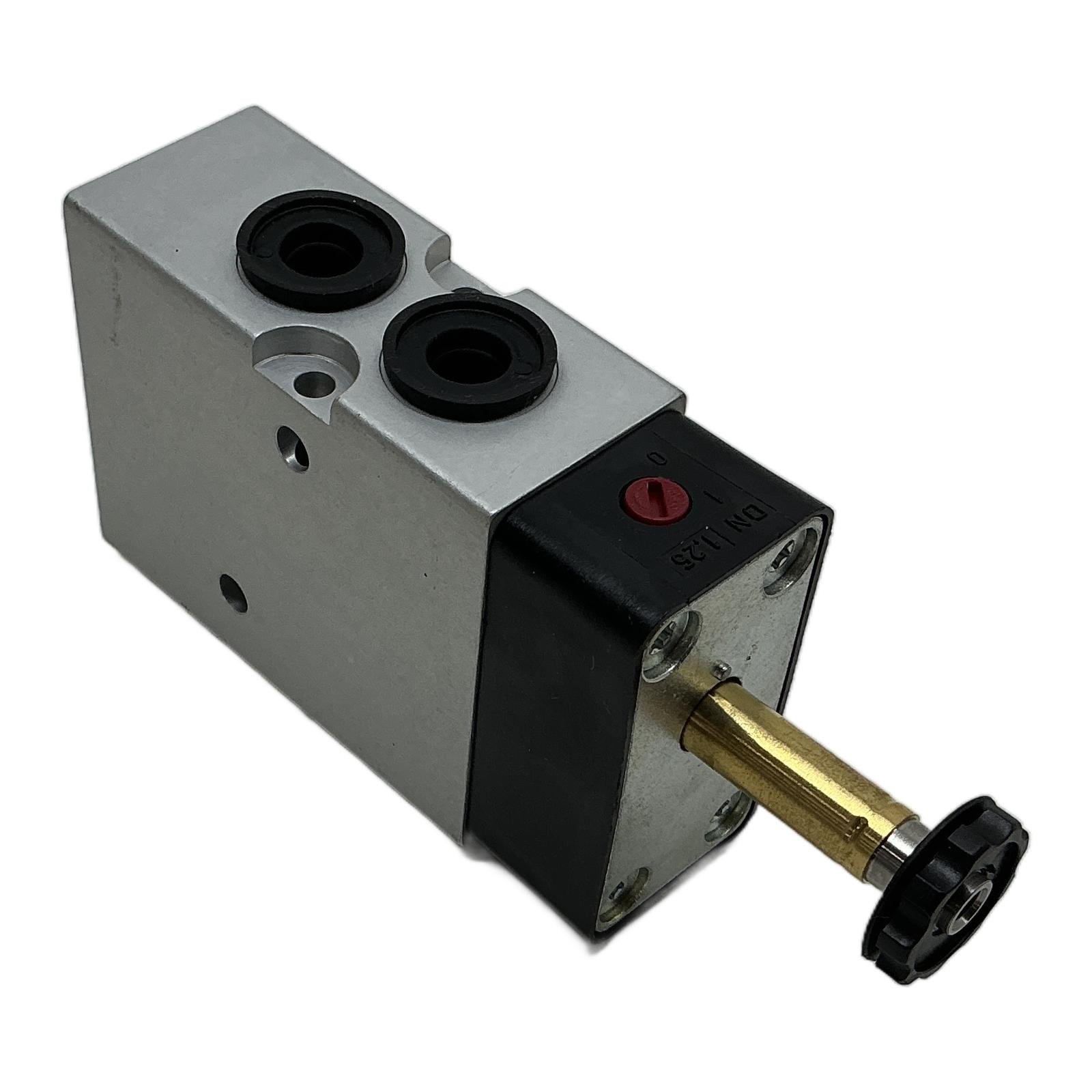

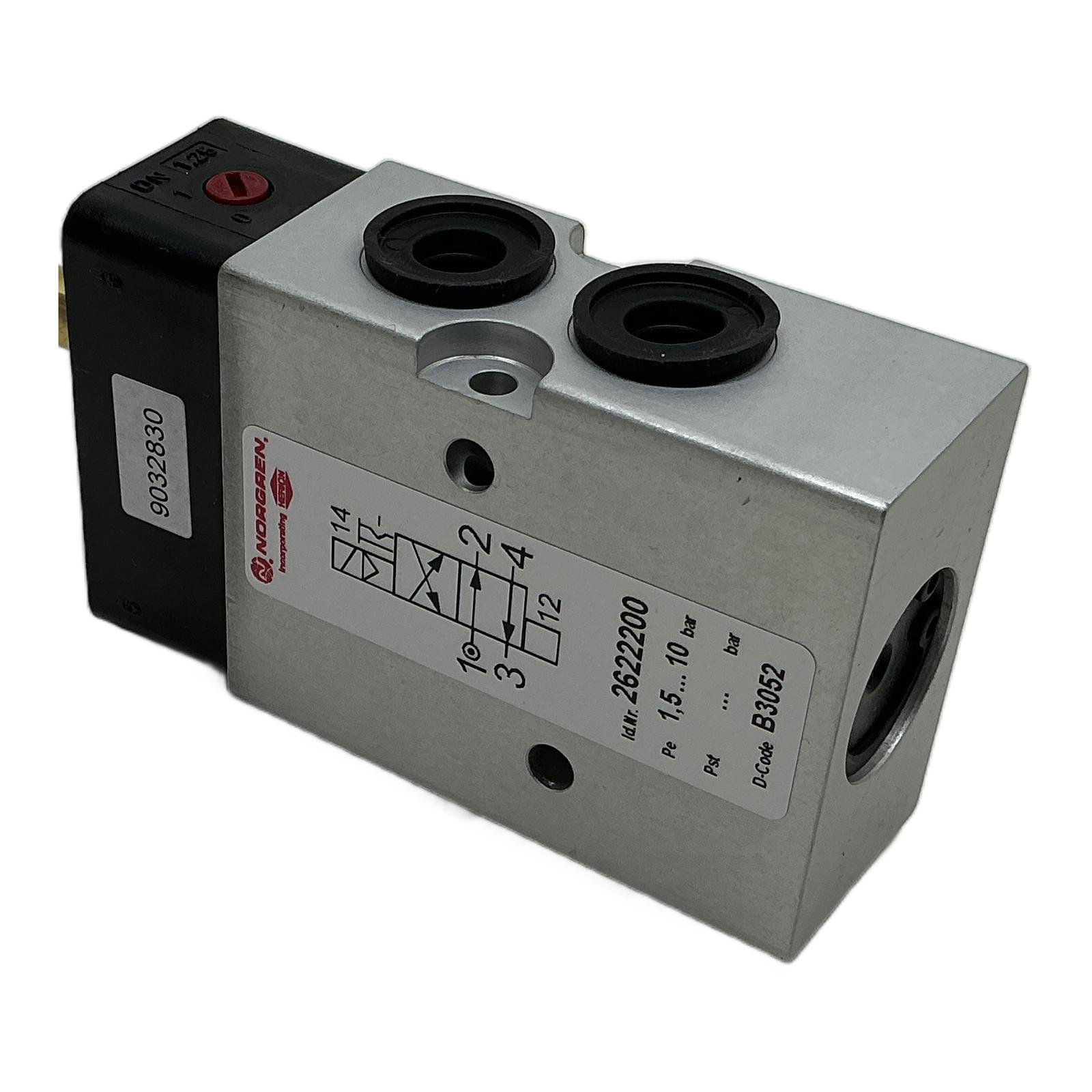

Norgren 2622200 3/2-Way G1/4 Mechanical Poppet Valve Description This Norgren 2622200 is a mechanically operated 3/2-way poppet valve, part of the proven Herion series. It provides reliable manual control for pneumatic systems through a simple push/pull knob. Designed for durability, this valve is suitable for a wide range of industrial applications where direct, manual intervention is required. Its normally closed configuration ensures that flow is blocked until the valve is actively actuated. Specifications Manufacturer: Norgren Part Number: 2622200 Function: 3/2-way, Normally Closed (NC) Actuation Type: Manual Push/Pull with Spring Return Port Connection: G1/4 Operating Pressure Range: 1.5 to 10 bar Ambient Temperature Range: -10 deg C to +70 deg C Medium: Compressed air, filtered, lubricated or non-lubricated Body Material: Aluminium Label Info Brand: NORGREN, Incorporating HERION Id.Nr.: 2622200 Pe: 1,5…10 bar D-Code: B3052 Application Ideal for use in industrial automation for applications such as manual overrides, safety-related stop functions, single-acting cylinder control, and piloting other valves within a pneumatic circuit. Country of Origin Made in Germany. CO2 Impact Choosing this new-old-stock valve over a newly manufactured one prevents approximately 12.0 kg of CO2 emissions, contributing to a more sustainable industrial practice. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does ‘3/2-way Normally Closed’ mean?A 3/2-way valve has three ports and two positions. ‘Normally Closed’ (NC) means that in its resting state (unactuated), the inlet port (1) is blocked, and the outlet port (2) is connected to the exhaust port (3), venting any downstream pressure. Can this valve be panel mounted?Yes, valves with this type of push/pull actuator are often designed for panel mounting. You would need to check the thread size and diameter of the actuator bushing to ensure it fits your panel cutout. What is the D-Code B3052 on the label?This is a manufacturer’s production code, often indicating the factory, date, and shift of production. While the exact meaning is internal to Norgren, it is used for traceability. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
