FAG 222SM115T

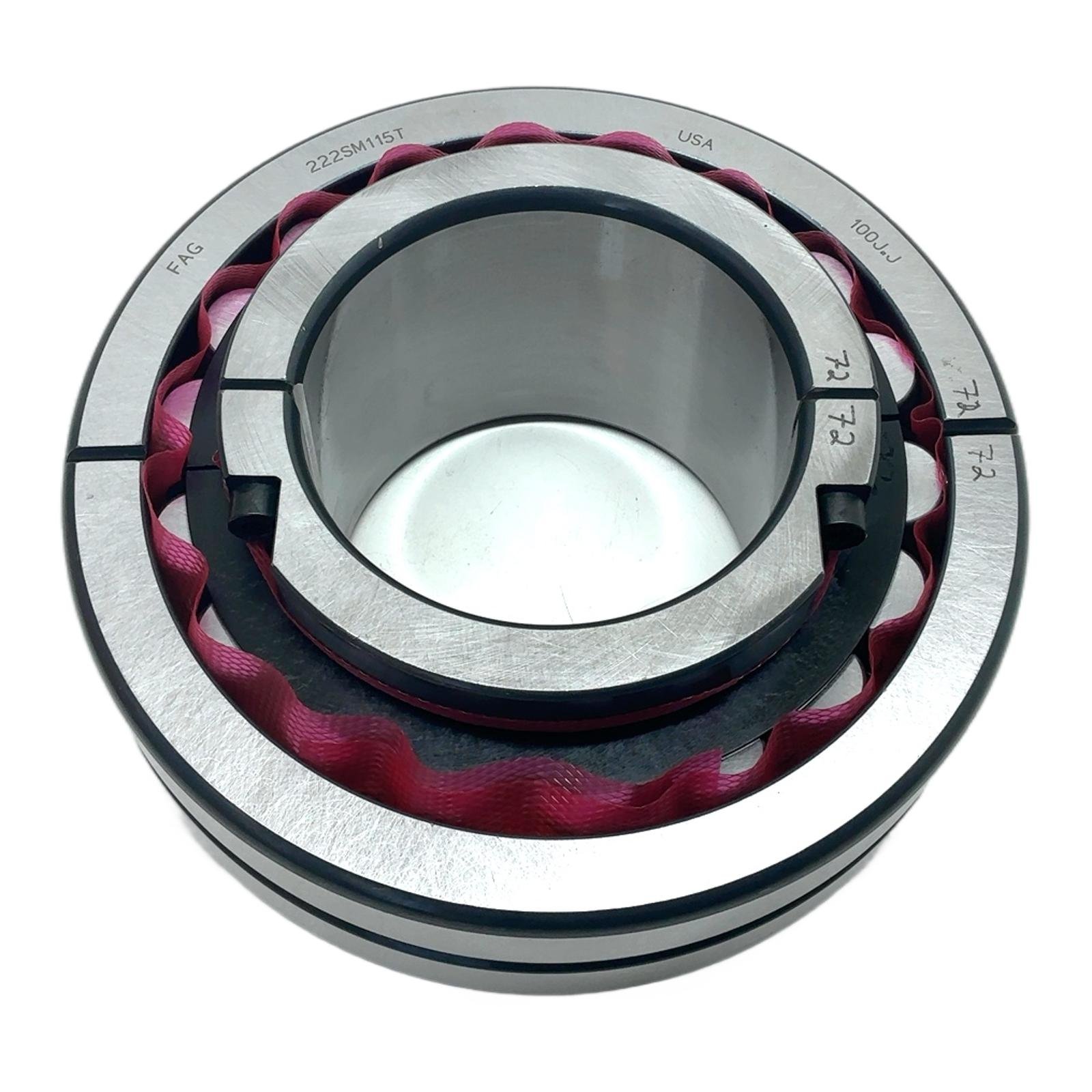

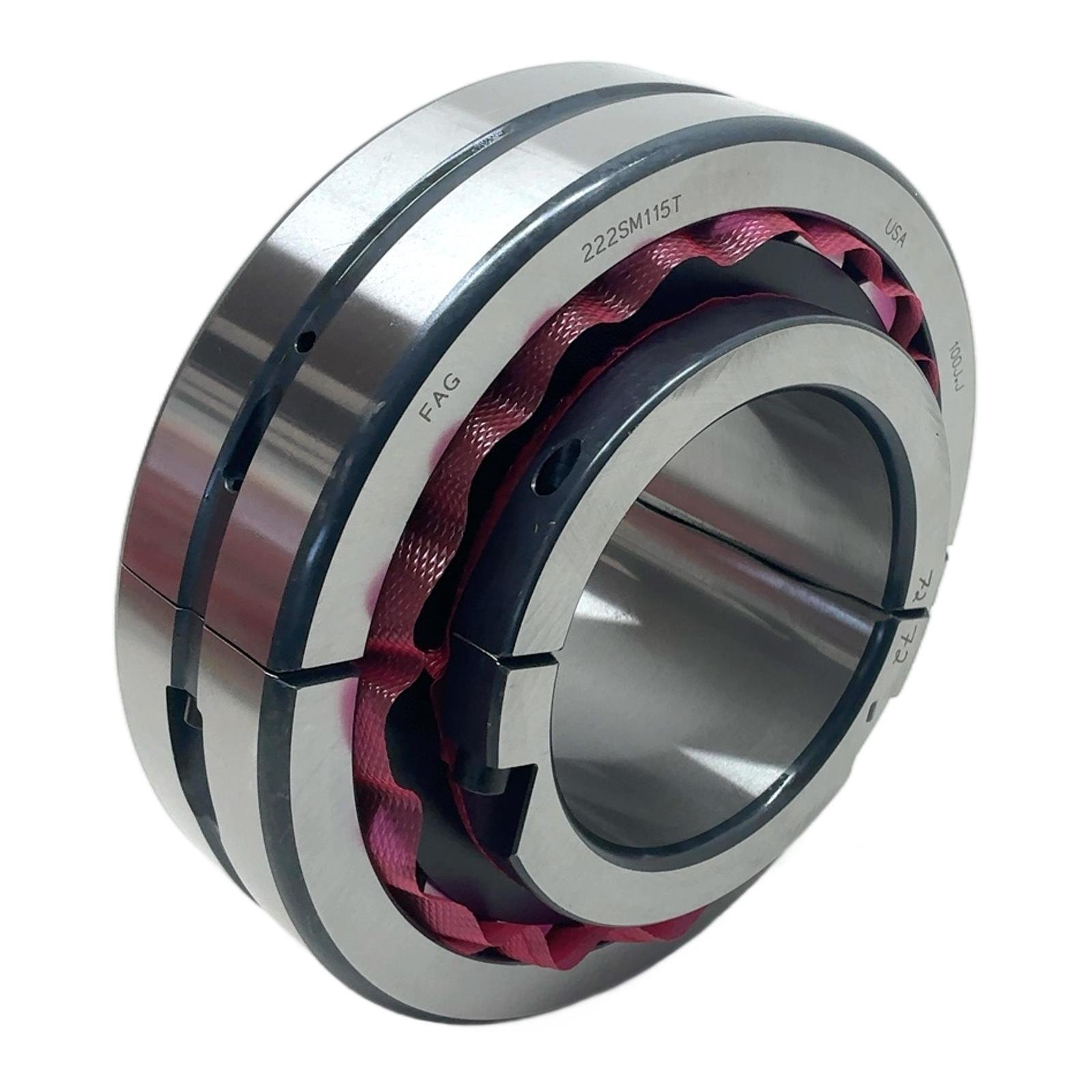

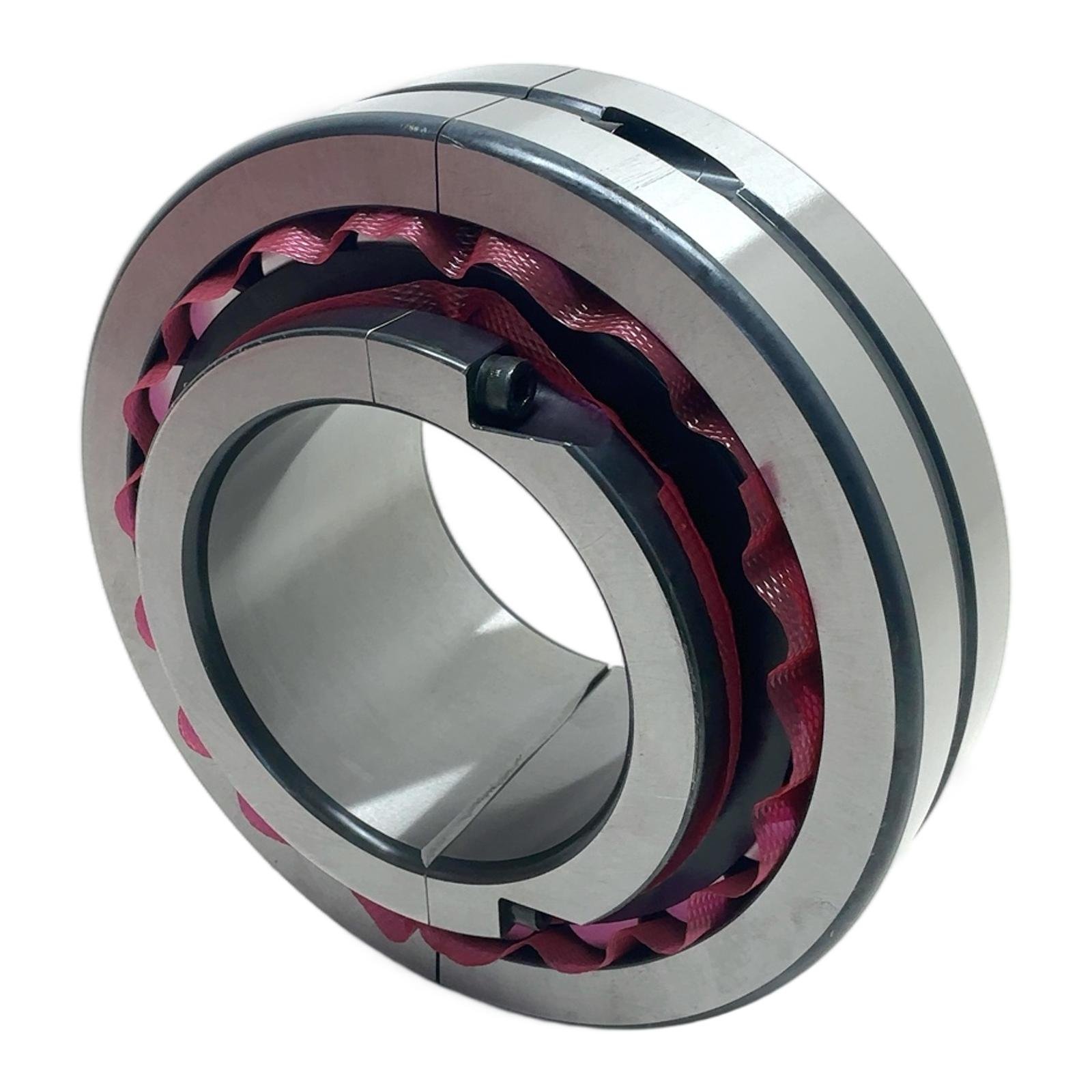

FAG 222SM115T Split Spherical Roller Bearing Description The FAG 222SM115T is a high-precision split spherical roller bearing designed for applications where bearing replacement is challenging. Its split construction allows for installation without the need to dismount adjacent components, saving valuable time and reducing maintenance costs. This bearing can accommodate misalignment and heavy loads, making it a reliable choice for heavy industrial machinery. Specifications Manufacturer: FAG Model: 222SM115T Type: Split Spherical Roller Bearing Bore Diameter: 115 mm Outside Diameter: 210 mm Width: 53 mm Cage: Roller-guiding solid brass cage Label Info Part Number: 222SM115T EAN: 4012801478816 Application Ideal for use in conveyor systems, ventilation systems, continuous casting machines, and other equipment where bearing locations are difficult to access. Country of Origin Made in the USA. CO2 Impact By choosing this new surplus item, you avoid the production of a new one, saving an estimated 16.7 kg of CO2 – a significant contribution to sustainable operations. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the main advantage of a split spherical roller bearing like the FAG 222SM115T?The primary advantage is ease of installation and maintenance. The split design allows the bearing to be mounted on a shaft without having to remove other components, which is ideal for “trapped” locations like between a gearbox and a drive motor. This significantly reduces downtime and labor costs. What is the correct procedure for tightening the clamping ring screws on this bearing?It is critical to follow the manufacturer’s mounting instructions included with the bearing. The screws on the housing and shaft clamping rings must be tightened sequentially and in a crisscross pattern to the specified torque value using a torque wrench. The included Loctite 242 should be applied to the screw threads to prevent them from loosening due to vibration. Can this bearing be used in high-temperature applications?The standard FAG 222SM115T with its brass cage is dimensionally stabilized for operating temperatures up to 200 deg Celsius (392 deg Fahrenheit). However, the limiting factor is often the lubricant. Always ensure the selected grease or oil is suitable for the specific operating temperature range of your application. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
