FAG 20308-TVP

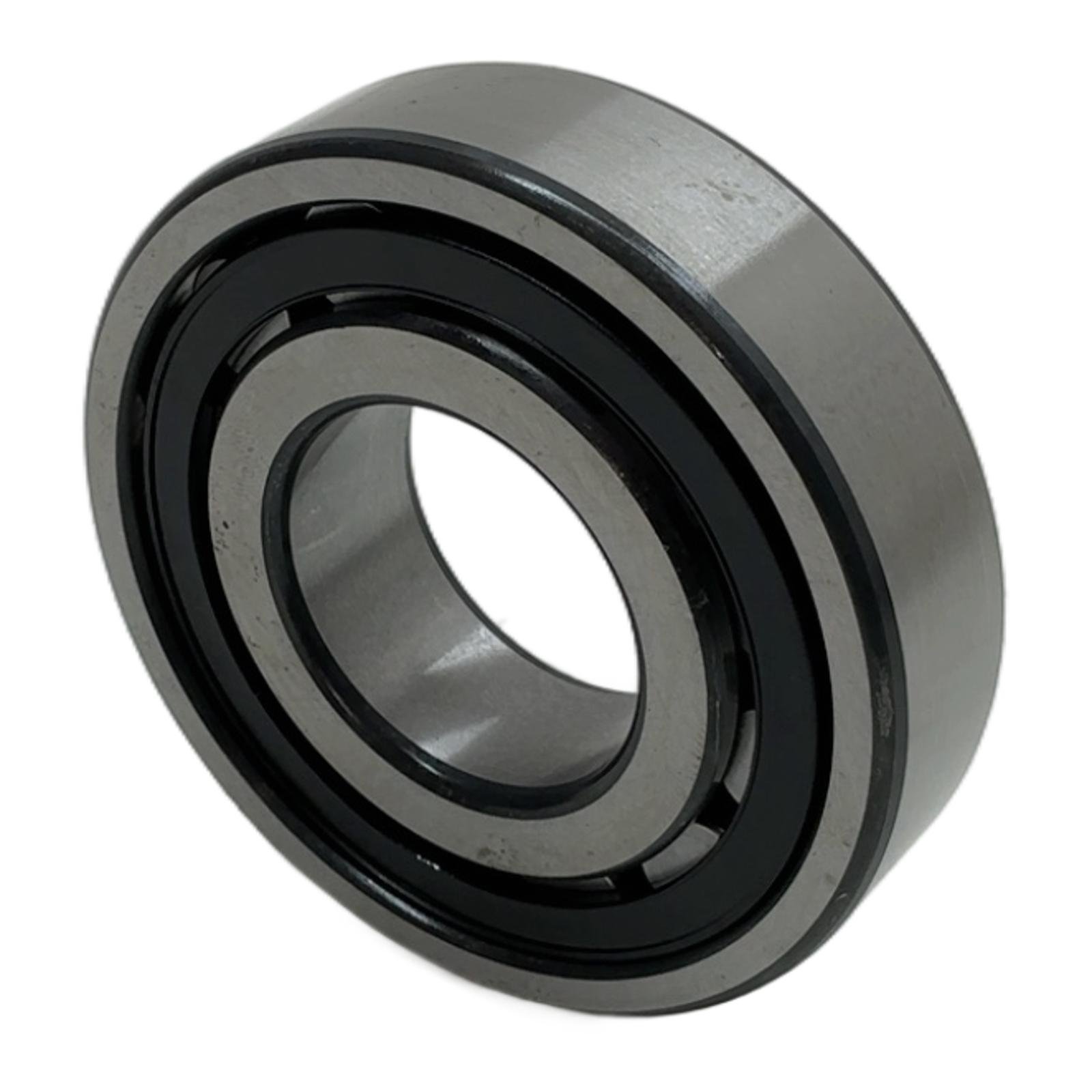

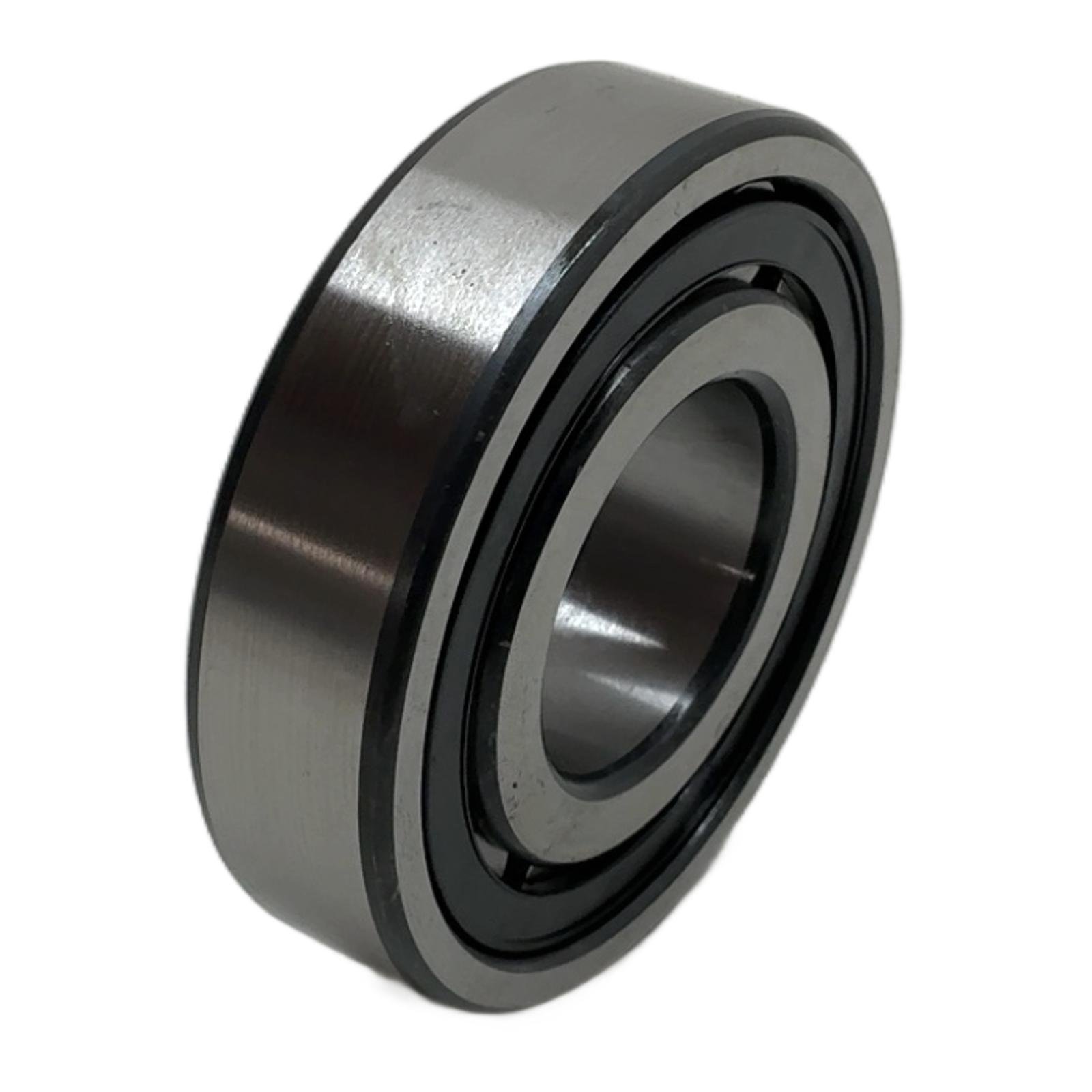

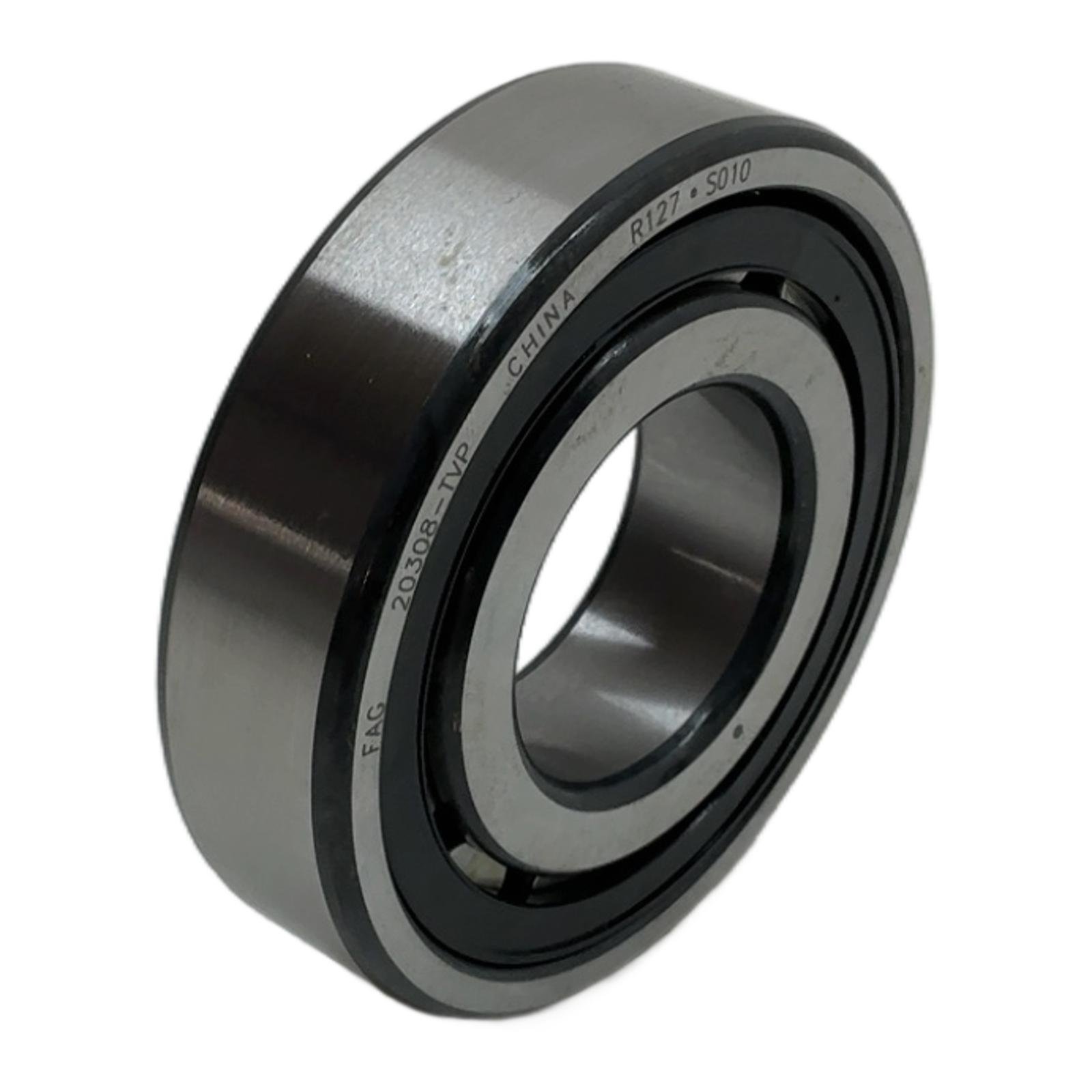

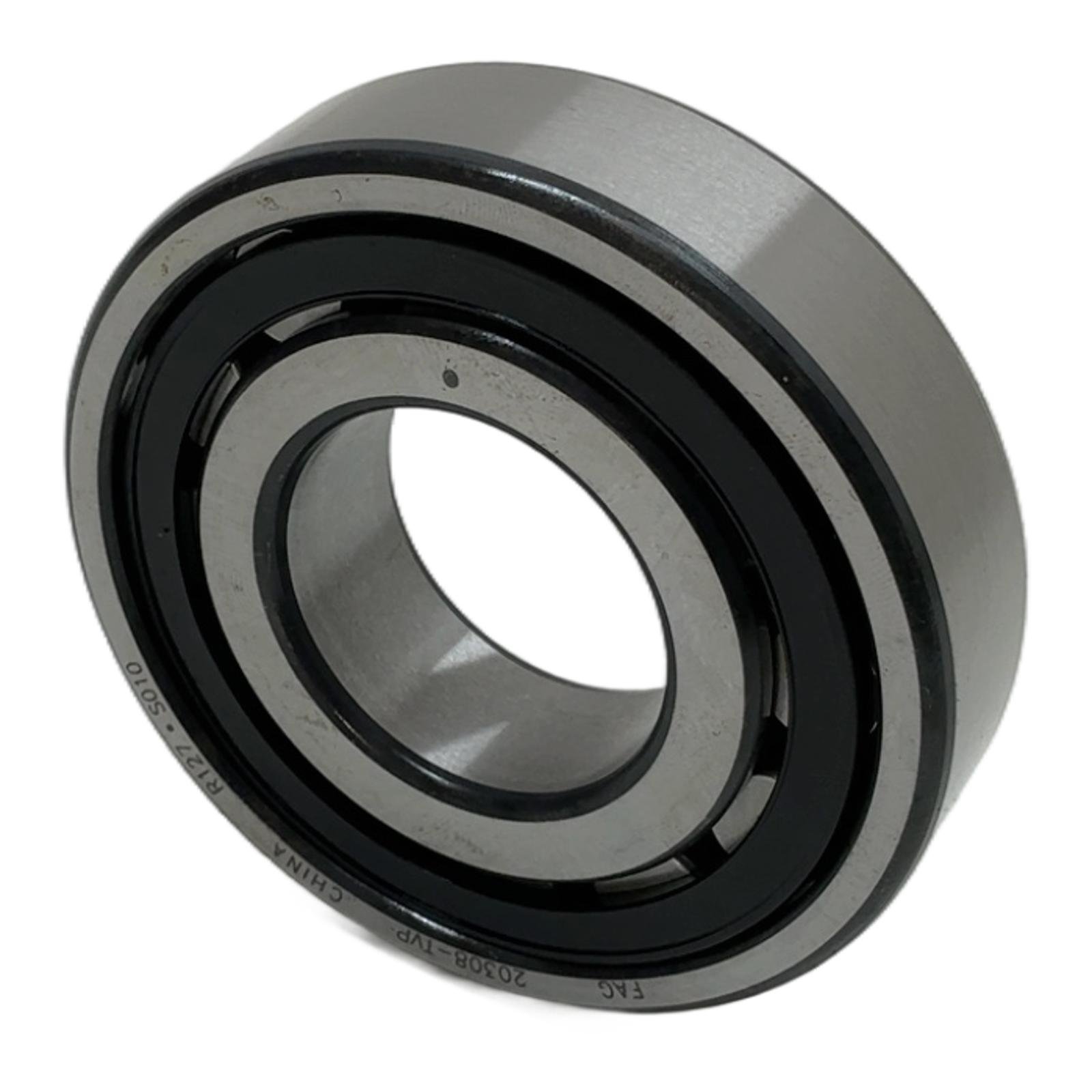

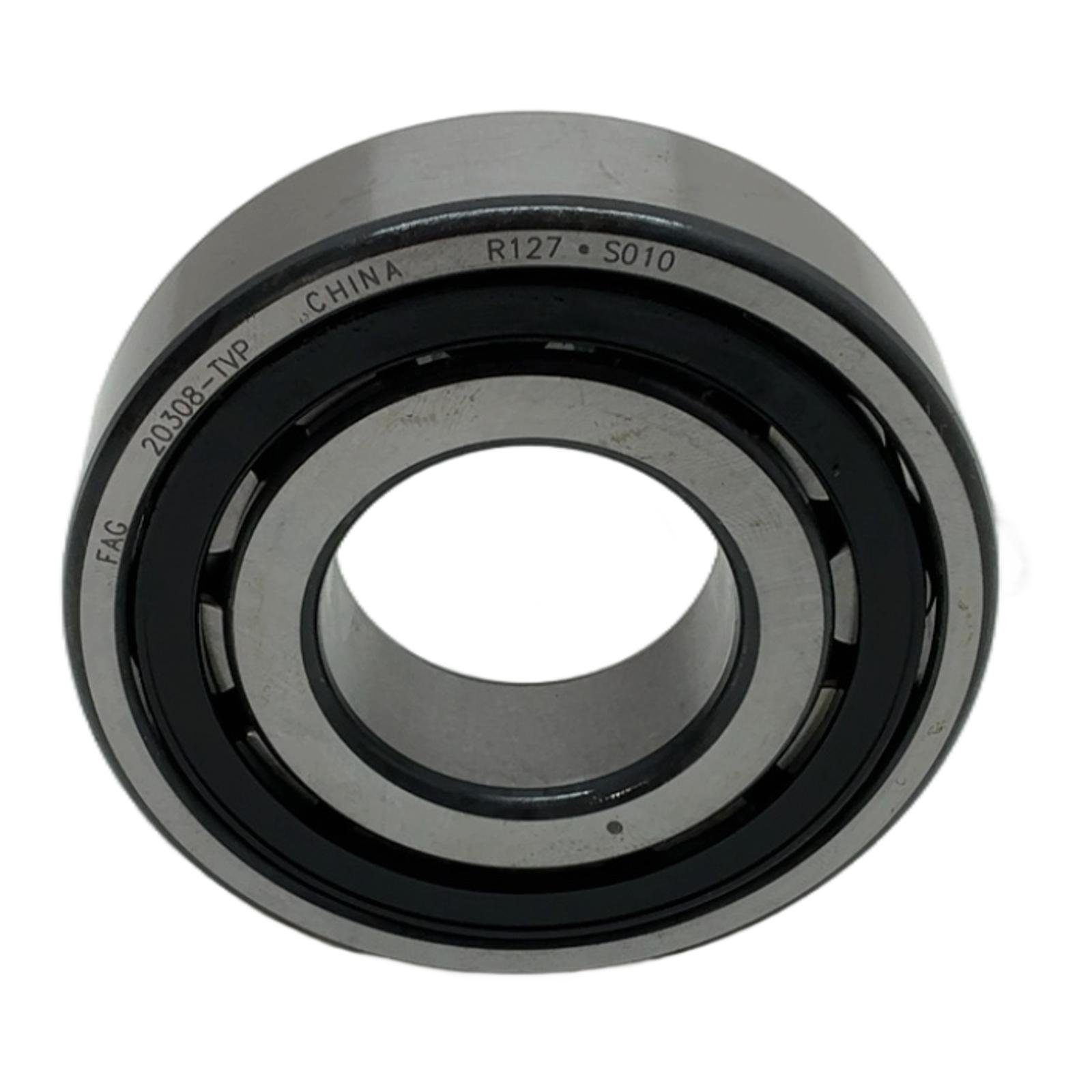

FAG 20308-TVP Deep Groove Ball Bearing Description The FAG 20308-TVP is a robust single-row deep groove ball bearing designed for high performance in industrial applications. Its key feature is the glass fibre reinforced polyamide (PA66) cage (TVP), which offers excellent sliding properties and is suitable for high rotational speeds. This open-design bearing allows for easy lubrication and is ideal for use in clean operating environments. It is engineered to handle both radial and axial forces, providing versatile and reliable operation. Specifications Manufacturer: FAG Type Number: 20308-TVP Inner Diameter: 40 mm Outer Diameter: 80 mm Width: 23 mm Cage Type: Polyamide (TVP) Design: Open (No Seals) Basic Dynamic Load Rating: 35 kN Basic Static Load Rating: 21.6 kN Label Info FAG 20308-TVP EAN: 4012801159975 Application This bearing is commonly used in electric motors, pumps, gearboxes, and general industrial machinery where reliability and high-speed capability are essential. Country of Origin Made in China. CO2 Impact Choosing this reused FAG bearing saves approximately 1.0 kg of CO2 compared to manufacturing a new one. This reflects a commitment to sustainable industrial practices. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does the ‘TVP’ suffix mean for a FAG bearing? The ‘TVP’ suffix indicates that the bearing is fitted with a solid cage made from glass fibre reinforced polyamide 66. This material is lightweight, strong, and offers excellent performance at high speeds and continuous operating temperatures up to 120 deg Celsius. Is this 20308-TVP bearing suitable for high-temperature applications? The polyamide cage (TVP) has a continuous operating temperature limit of approximately 120 deg Celsius (250 deg Fahrenheit). For applications exceeding this temperature, a bearing with a steel cage (e.g., suffix M) would be more appropriate. Can I use grease or oil for lubricating this open bearing? Yes, as an open bearing, it is designed to be lubricated with either oil or grease. The choice depends on the application’s speed, load, and operating environment. Ensure the lubrication method is compatible with the polyamide cage material. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
