SIEMENS 1FT5062-0AF01-1-Z 1FU1050-6NF

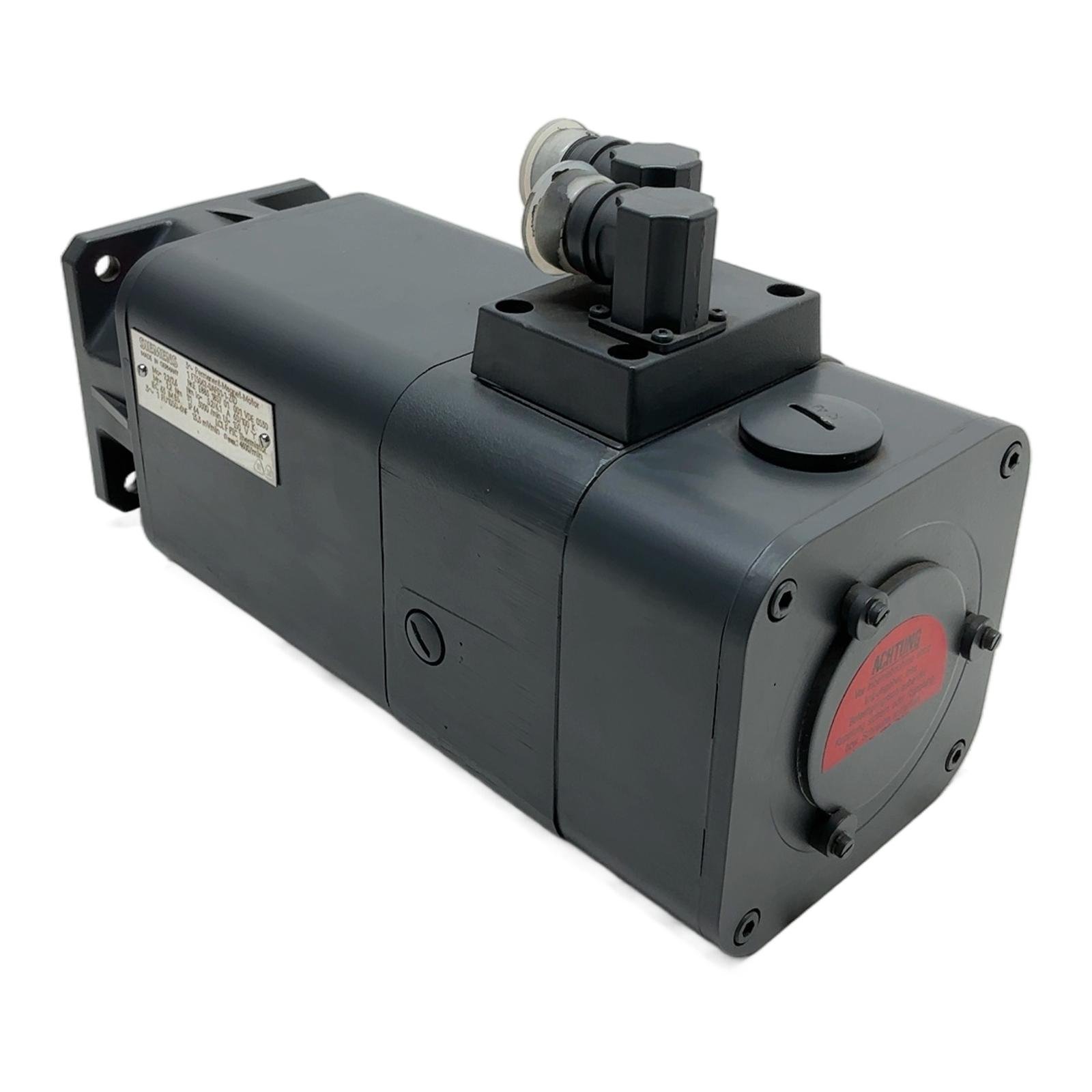

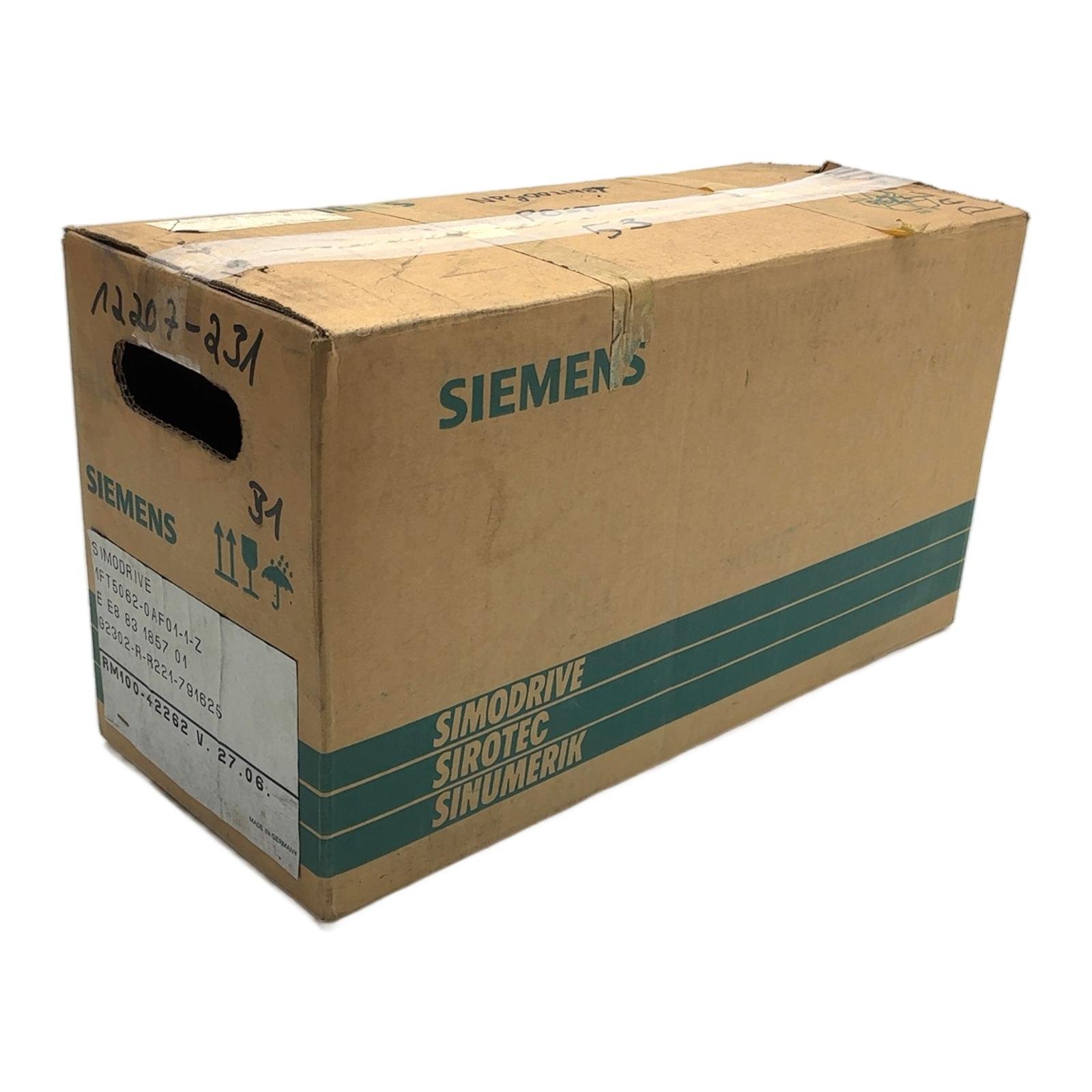

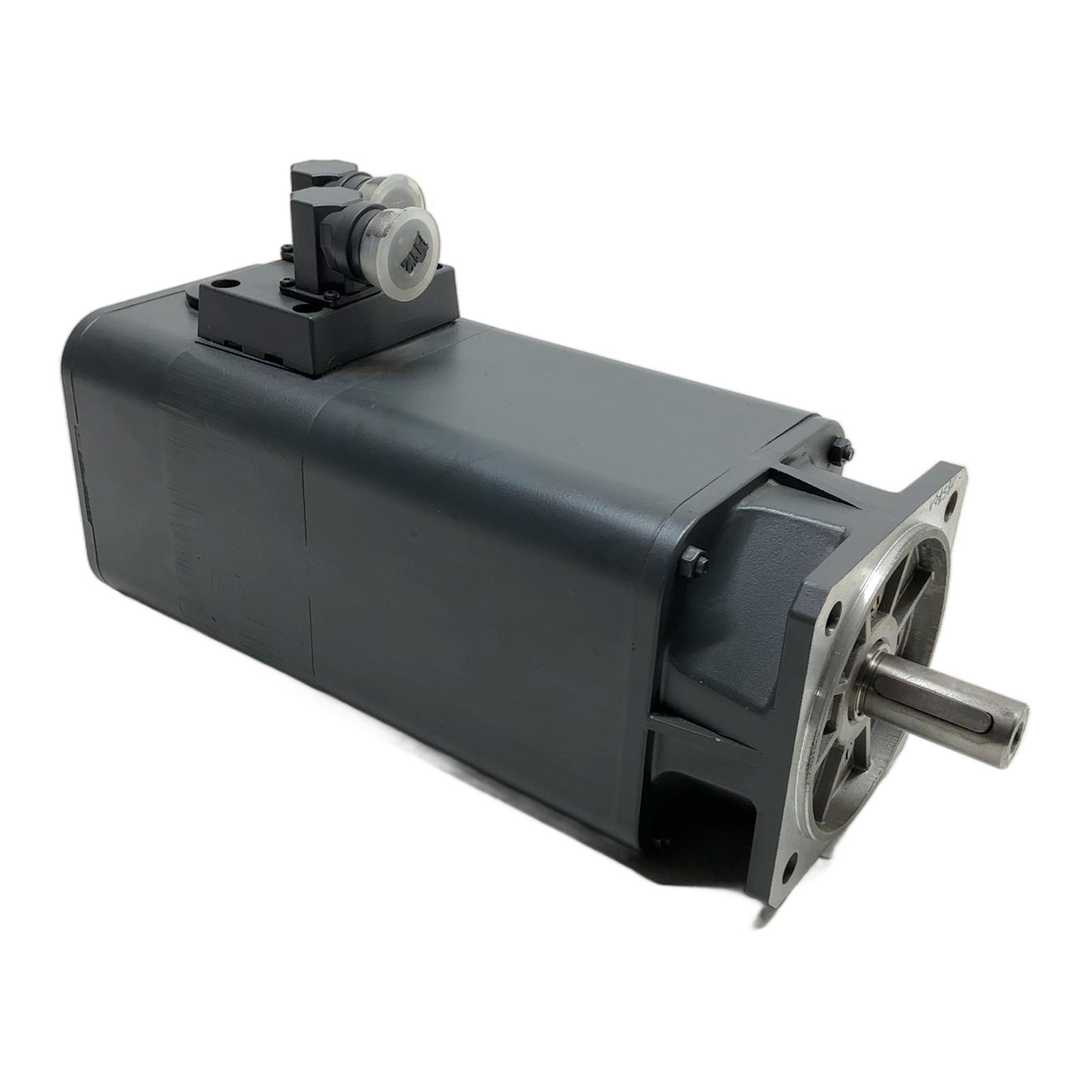

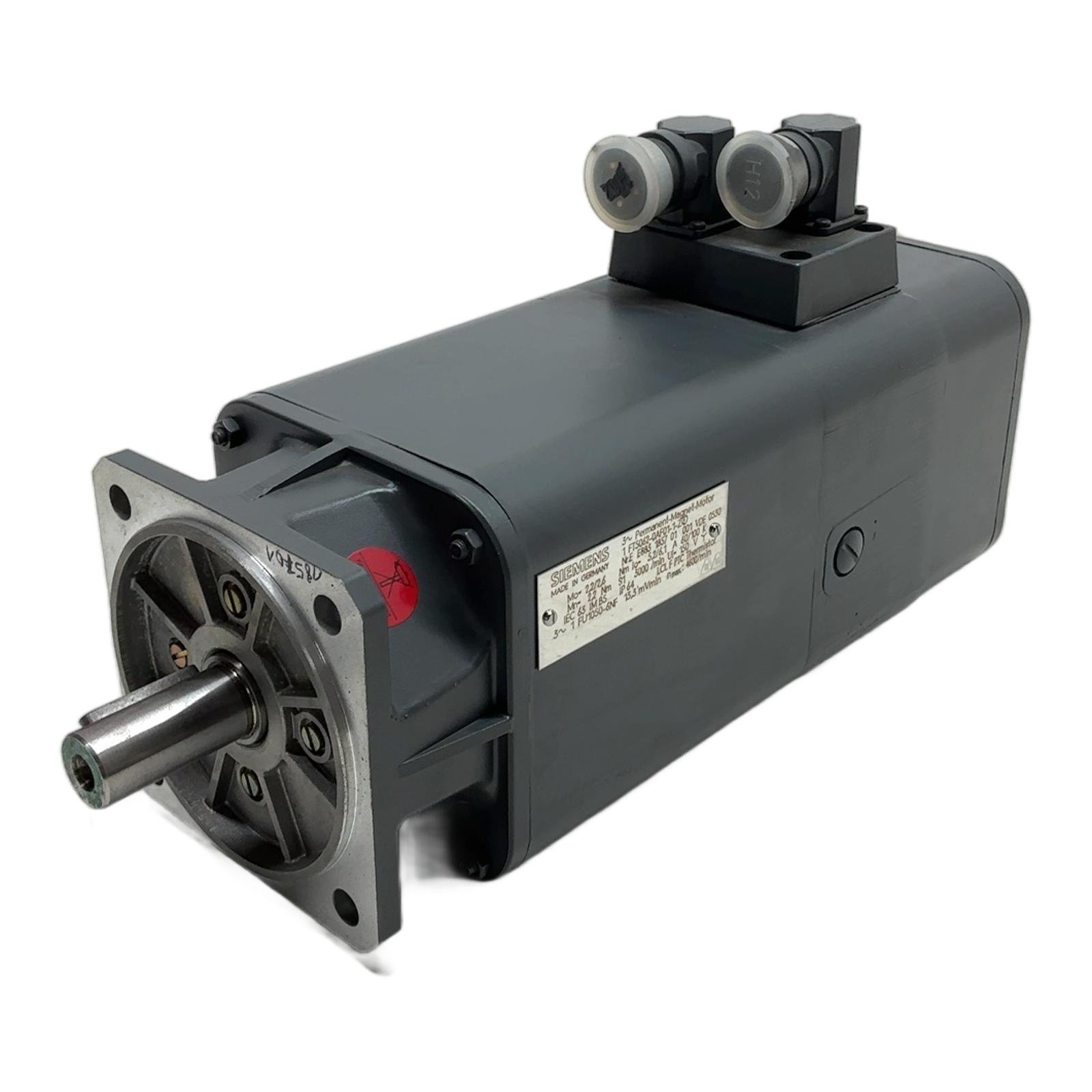

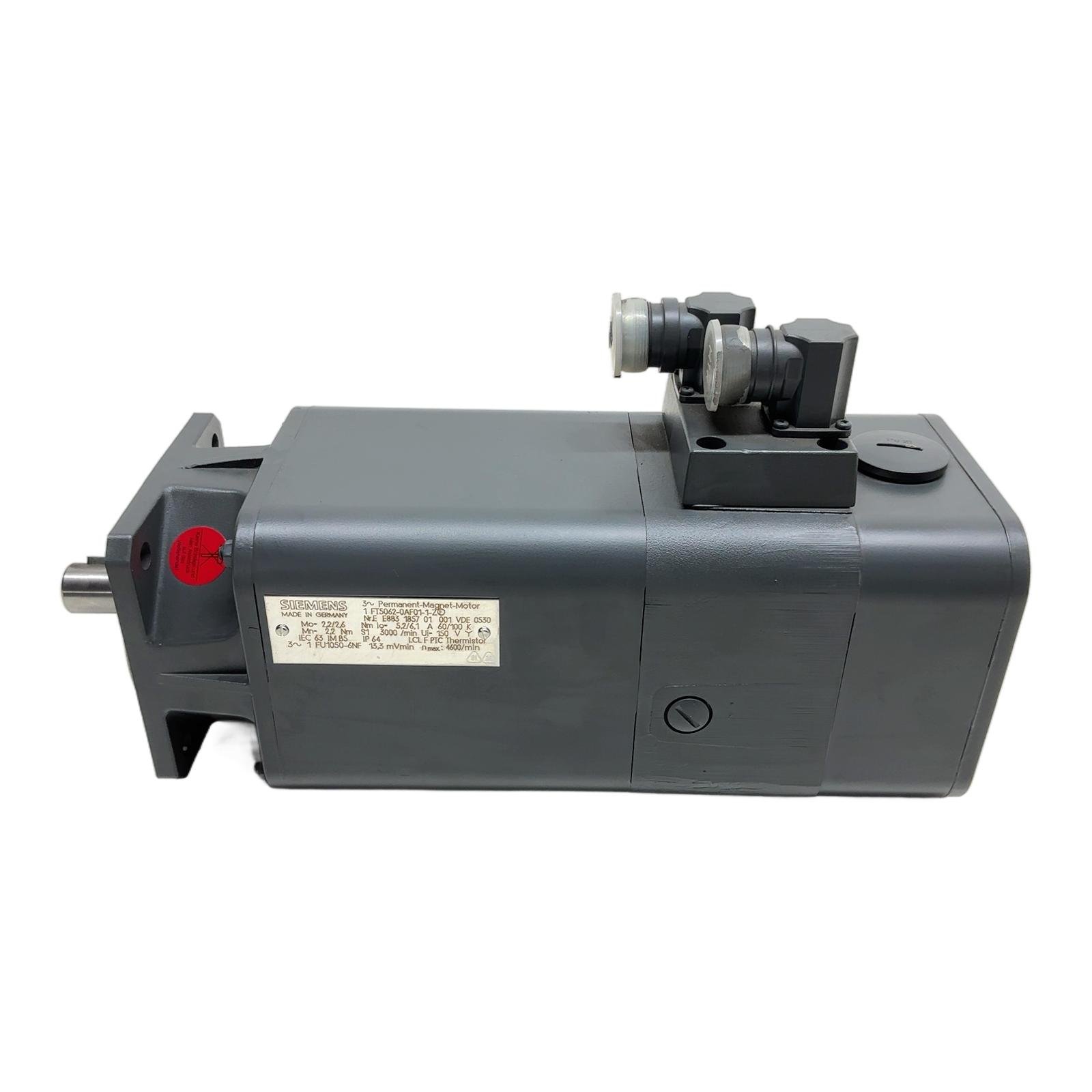

<h2>Siemens SIMODRIVE 2.2 Nm Servo Motor</h2> <h3>Description</h3> <p>The Siemens 1FT5062-0AF01-1-Z is a high-performance permanent magnet servo motor designed for use with the SIMODRIVE drive system. It offers excellent dynamic response and high power density, making it suitable for demanding positioning tasks in machine tools, robotics, and general automation. This motor comes as new old stock in its original packaging, ensuring reliability for your critical spare part needs.</p> <h3>Specifications</h3> <ul> <li>Manufacturer: Siemens</li> <li>Series: SIMODRIVE 1FT5</li> <li>Model: 1FT5062-0AF01-1-Z</li> <li>Motor Type: 3-Phase Permanent Magnet Synchronous Motor</li> <li>Rated Torque (Mn): 2.2 Nm</li> <li>Stall Torque (Mo): 2.2 / 2.6 Nm</li> <li>Rated Speed: 3000 rpm</li> <li>Maximum Speed: 4600 rpm</li> <li>Rated Voltage: 150 V</li> <li>Stall Current (Io): 5.2 / 6.1 A</li> <li>Protection Rating: IP64</li> <li>Insulation Class: F</li> <li>Mounting: IM B5 Flange</li> <li>Feedback System: Built-in Resolver (1FU1050-6NF)</li> </ul> <h3>Label Info</h3> <ul> <li>Part Number: 1FT5062-0AF01-1-Z</li> <li>Serial Number: E E883 1857 01 001</li> <li>Resolver Type: 1FU1050-6NF</li> </ul> <h3>Application</h3> <p>This servo motor is commonly used in CNC machinery, packaging machines, printing presses, and automated handling systems that require precise speed and torque control.</p> <h3>Country of Origin</h3> <p>Made in Germany.</p> <h3>CO2 Impact</h3> <p>Opting for this reused servo motor prevents the emission of approximately 240 kg of CO2, which is comparable to driving a car for 1200 kilometers. This choice supports a circular economy and reduces industrial waste.</p> <h3>Availability</h3> <p>This item is in stock and ready for immediate dispatch. It is a legacy product, ideal for maintaining existing machinery. Order now from profideals for expert support and fast delivery.</p> <h3>FAQ</h3> <strong>What is the function of the ‘1FU1050-6NF’ component mentioned on the nameplate?</strong><br><p>This is the part number for the built-in resolver. The resolver provides analog feedback on the motor’s rotor position to the servo drive, enabling precise control over speed and position.</p> <strong>Is this 1FT5 motor compatible with modern Siemens SINAMICS drives?</strong><br><p>No, the 1FT5 series motors are designed to work with older Siemens SIMODRIVE controllers, such as the 611 series. They are generally not compatible with modern SINAMICS drives, which are designed for newer motor series like 1FK7 or 1PH8.</p> <strong>What does the ‘-Z’ suffix in the model number 1FT5062-0AF01-1-Z signify?</strong><br><p>The ‘-Z’ suffix in a Siemens order number typically indicates a special version or a combination of options that are not covered by the standard model code. This could include a specific cable length, connector type, or other custom modifications.</p> <p><em>profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.</em></p> <p>Last Update: Friday, March 13, 2026</p>
