FAG 1307K.TV.C3

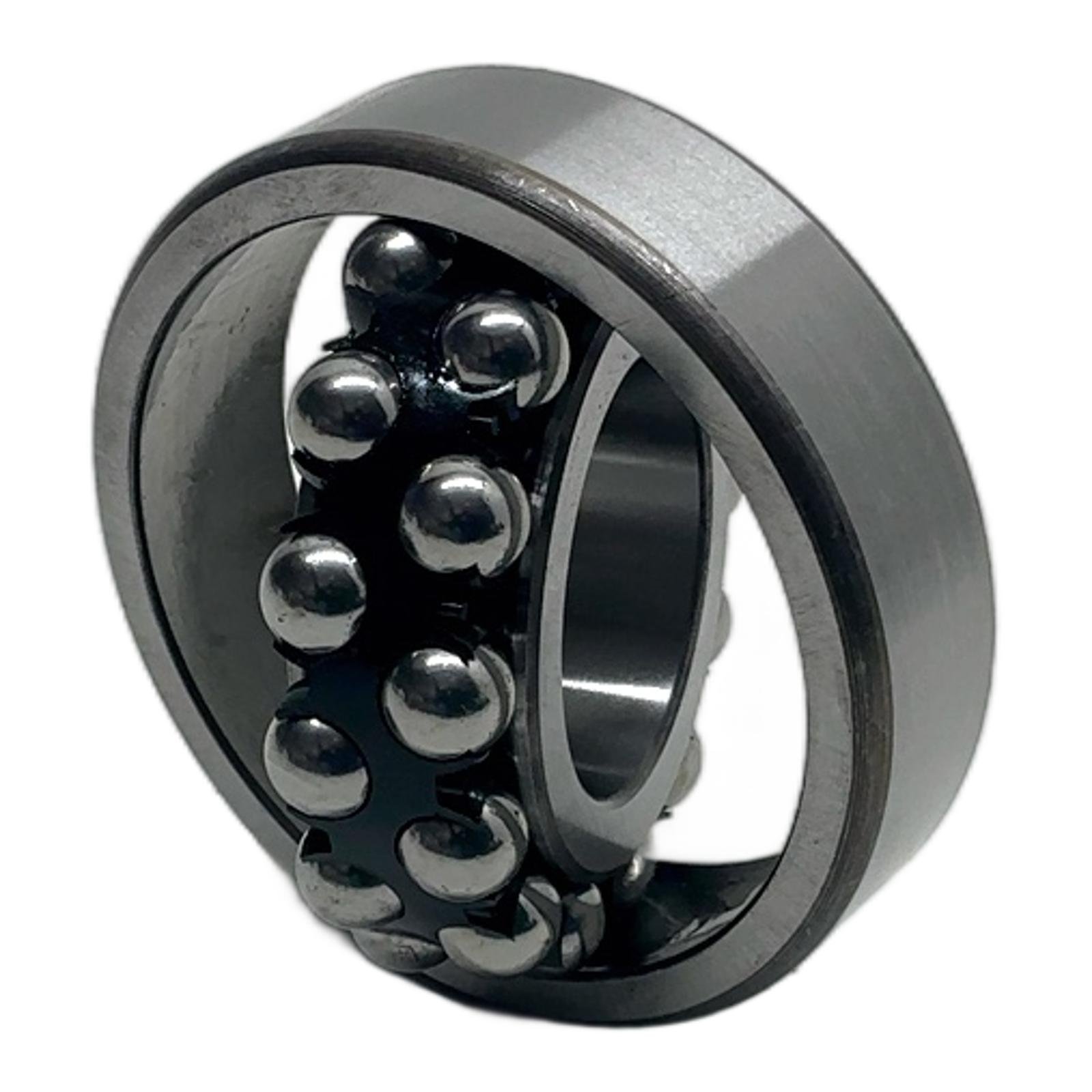

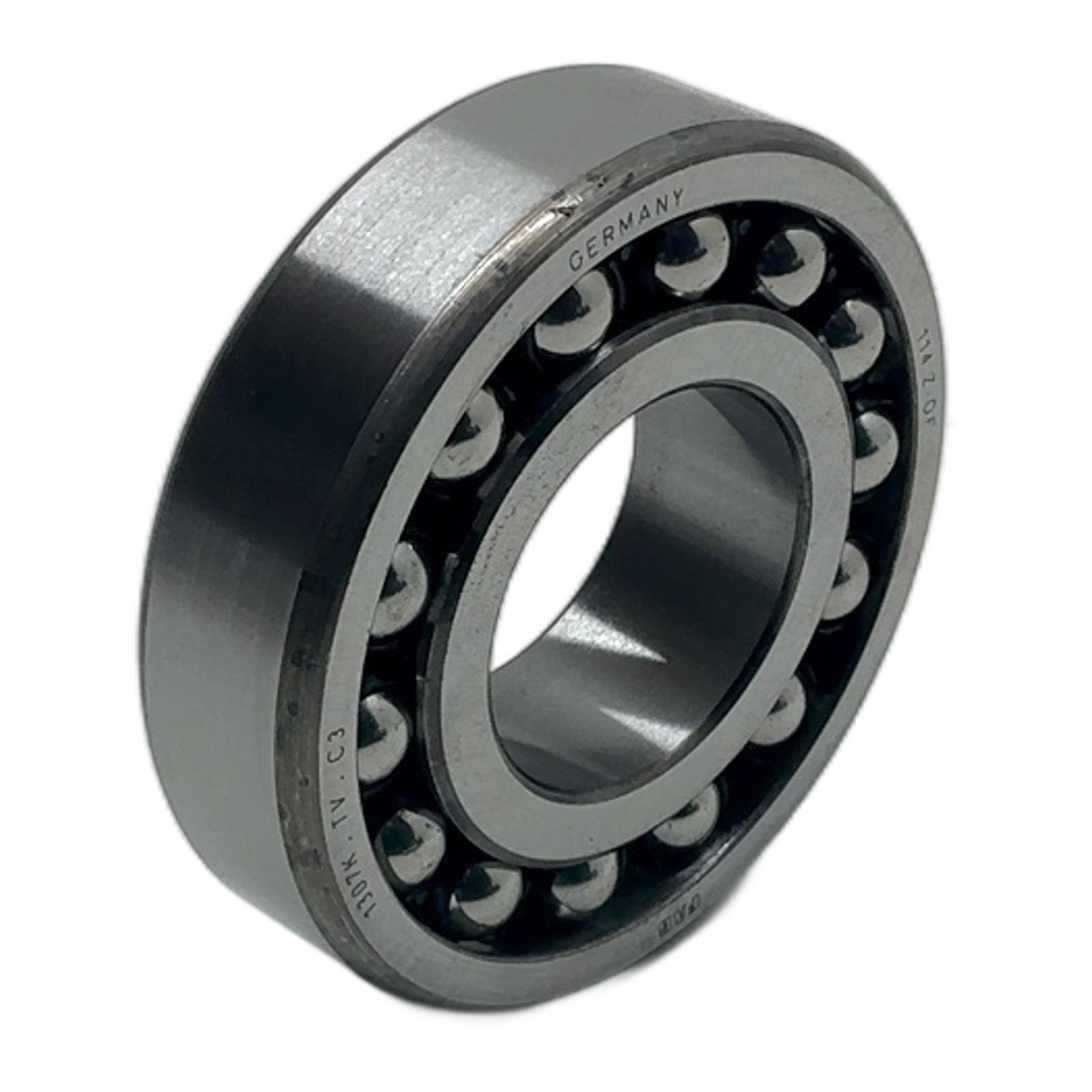

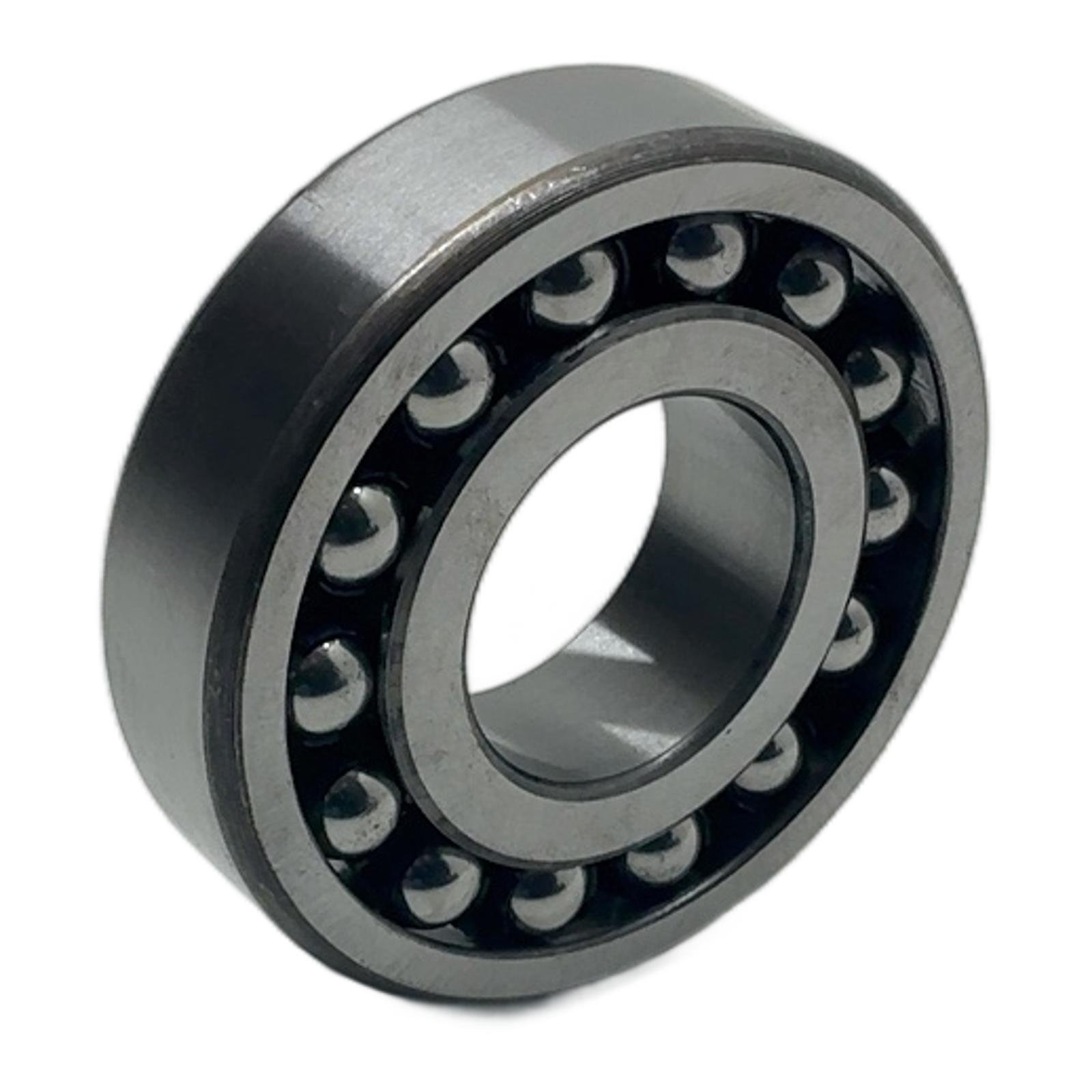

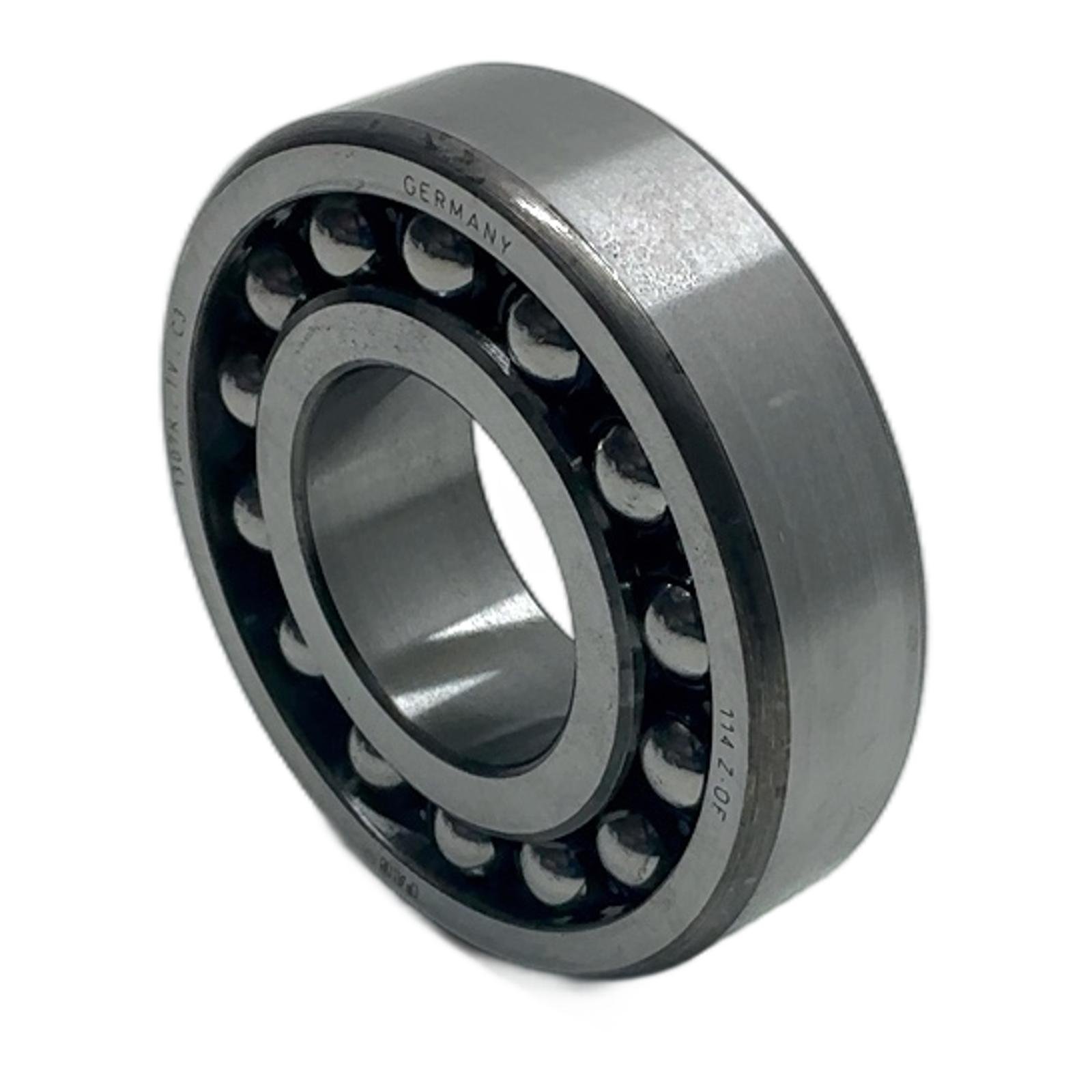

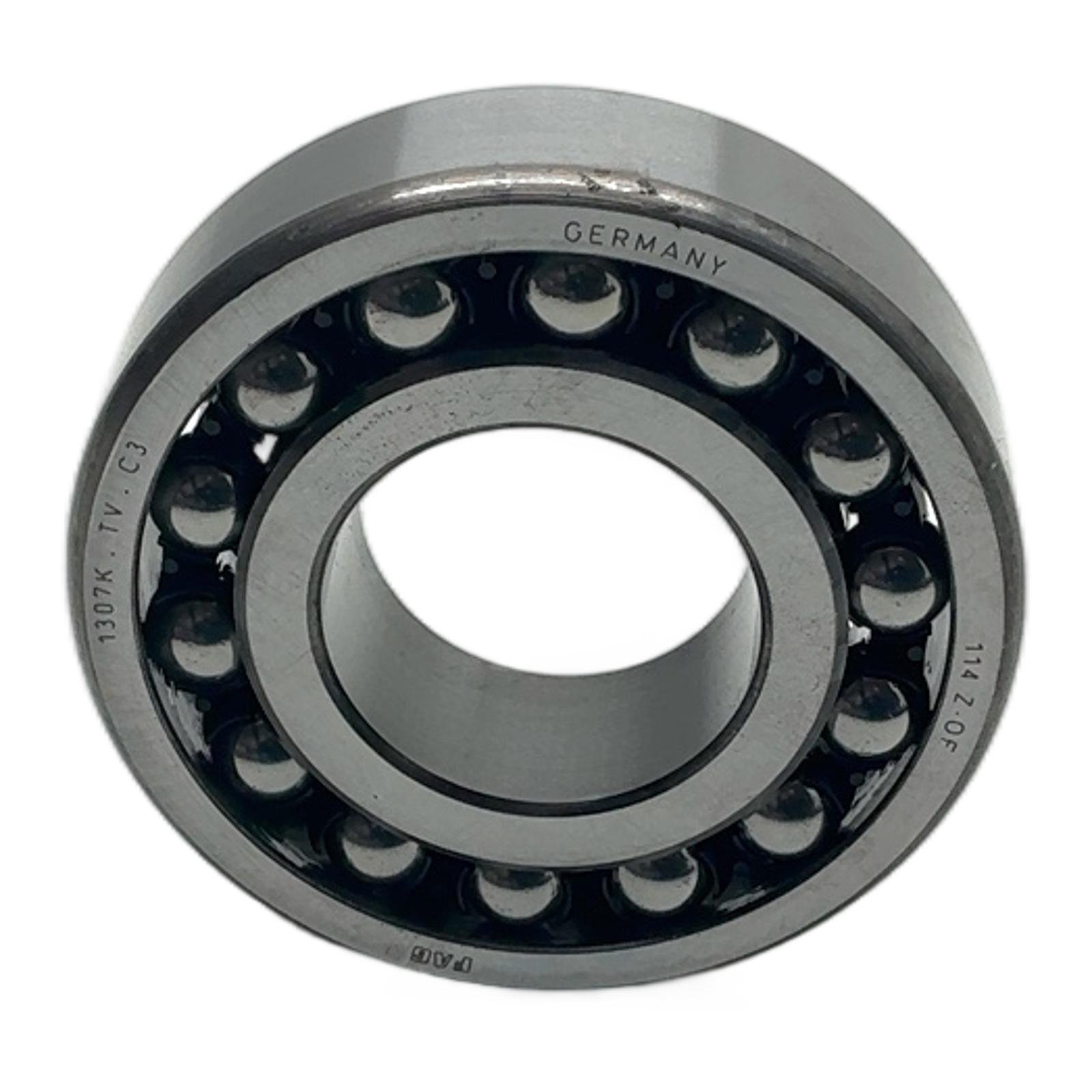

FAG 1307K.TV.C3 Self-Aligning Ball Bearing Description This is a high-performance self-aligning ball bearing, model 1307K.TV.C3, manufactured by FAG in Germany. It is designed to accommodate misalignment between the shaft and housing. This bearing is particularly suited for applications where shaft deflection or mounting errors are expected. This item is new old stock, in excellent condition, and comes in its original, though worn, packaging. Specifications Manufacturer: FAG Type Number: 1307K.TV.C3 Inner Diameter (bore): 35 mm Outer Diameter: 80 mm Width: 21 mm Bore Type: Tapered (1:12) Cage Material: Glass fibre reinforced polyamide 66 Internal Clearance: C3 (greater than normal) Number of Rows: 2 Label Info FAG 1307K.TV.C3 GERMANY Application Ideal for use in industrial machinery such as agricultural equipment, fans and blowers, conveyor systems, and textile machinery where static and dynamic misalignments occur. Country of Origin Made in Germany. CO2 Impact Choosing this reused component over a new one saves approximately 0.9 kg of CO2, which is comparable to driving a car for 4.5 kilometers. Availability In stock. Order now from profideals for expert support and fast delivery. FAQ What does the ‘K’ in 1307K.TV.C3 signify?The ‘K’ indicates that the bearing has a tapered bore with a taper of 1:12. This design allows for mounting on a cylindrical or tapered shaft using an adapter sleeve (e.g., H series) or withdrawal sleeve, providing a secure and precise fit. Why is a C3 internal clearance important for this bearing?The C3 clearance means the radial internal play is greater than standard. This is crucial for applications that involve high speeds, temperature variations between the inner and outer rings, or where a tight press fit is required during installation. It prevents the bearing from seizing due to thermal expansion. What are the typical applications for a FAG 1307 series self-aligning ball bearing?Due to their ability to accommodate misalignment, these bearings are widely used in machinery where shaft deflection is expected. Common applications include agricultural equipment, ventilation fans, paper machines, conveyor systems, and textile machinery. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
