RINGSEAL 105x160x12 AS FPM

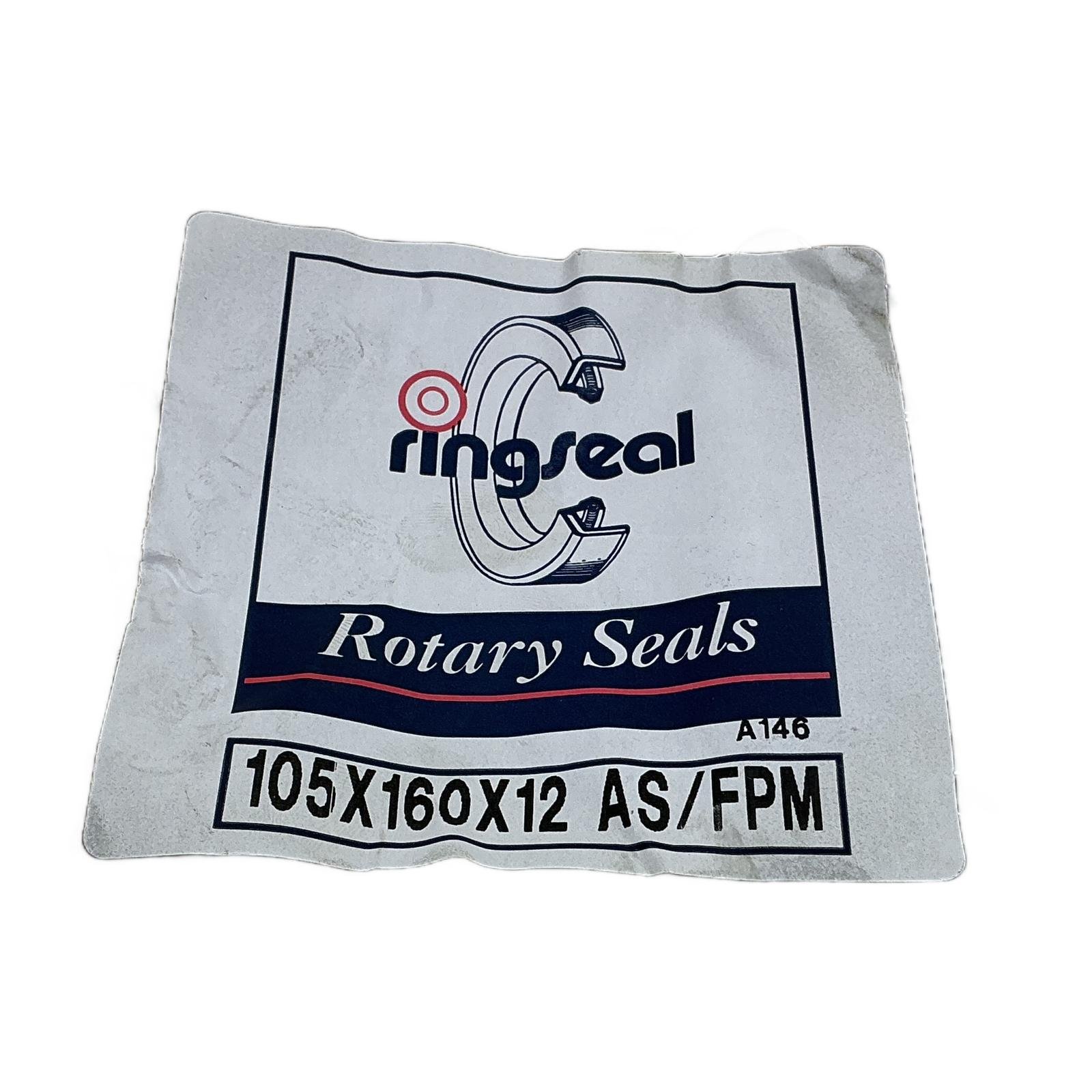

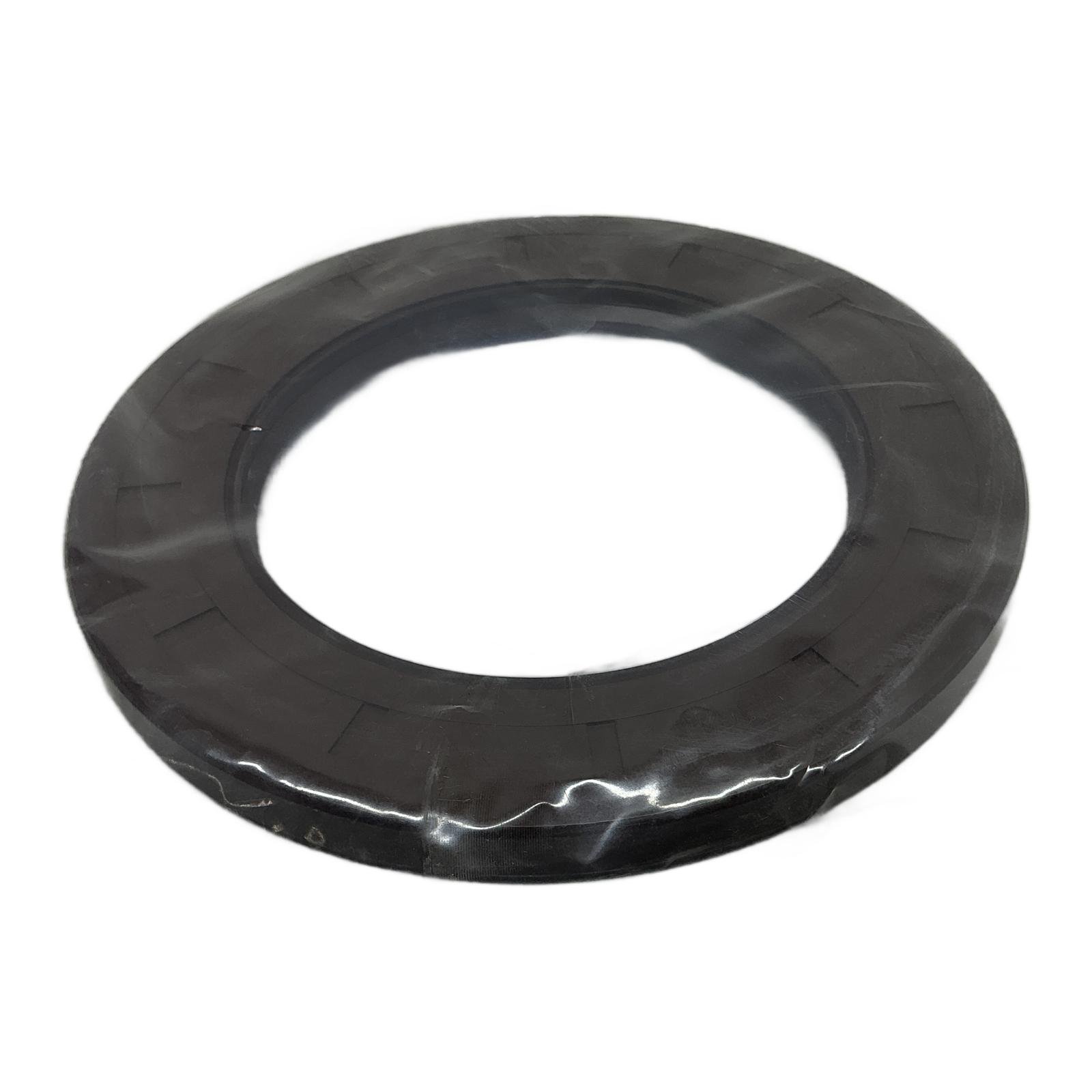

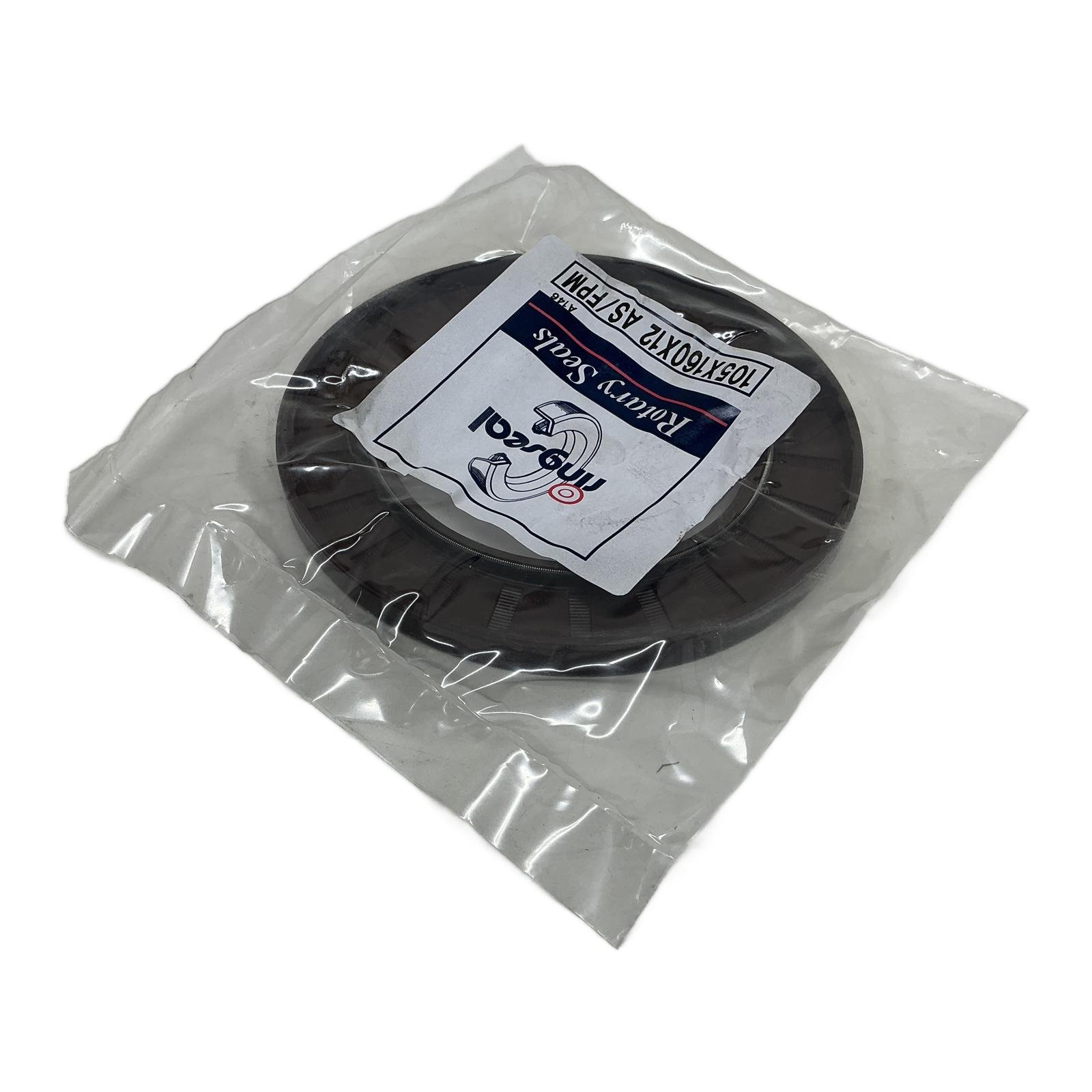

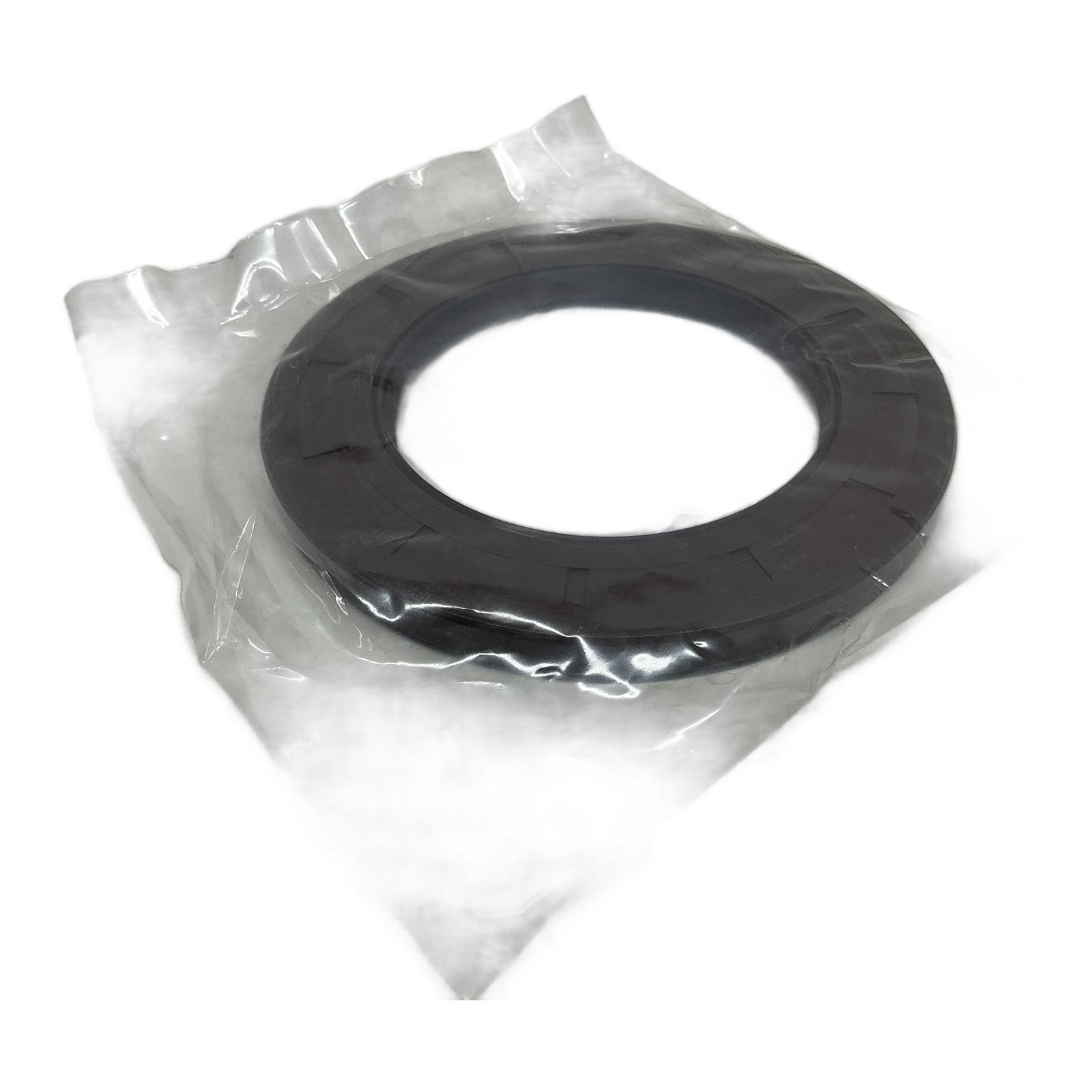

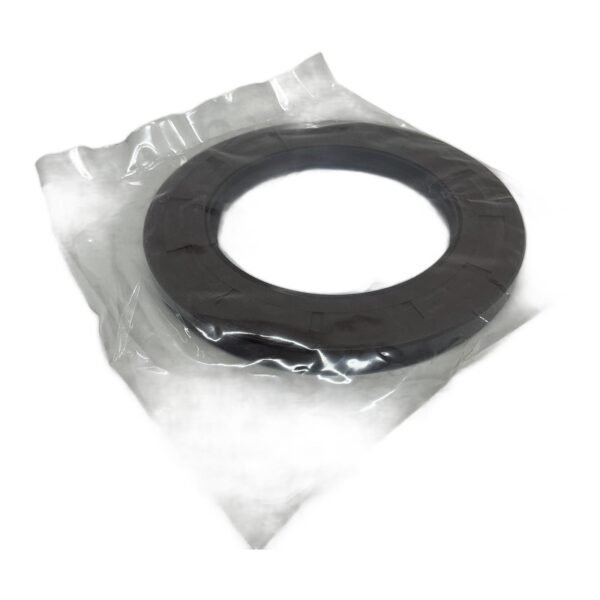

Ringseal 105x160x12 AS FPM Rotary Shaft Seal Description This is a high-performance rotary shaft seal from Ringseal, designed for reliable sealing in a wide range of industrial applications. With dimensions of 105x160x12 mm, this seal is manufactured from FPM (Viton), providing exceptional resistance to high temperatures, aggressive chemicals, and various oils. The AS design incorporates a primary sealing lip with a spring for optimal sealing pressure and a secondary dust lip to protect against external contamination, extending the life of your machinery. Specifications Manufacturer: Ringseal Type: Rotary Shaft Seal Inner Diameter: 105 mm Outer Diameter: 160 mm Width: 12 mm Design: AS (Single lip with protective dust lip) Material: FPM (Fluoroelastomer / Viton) Label Info Brand: Ringseal Part Number: 105X160X12 AS/FPM Identifier: A146 Application This FPM shaft seal is ideal for use in gearboxes, pumps, motors, and other rotating equipment where high temperatures and chemical exposure are present. It effectively contains lubricants and prevents the ingress of dirt, dust, and moisture. CO2 Impact Opting for this surplus component over a new one prevents the emission of approximately 1.3 kg of CO2. This saving is a direct result of avoiding the energy-intensive manufacturing process required for a new seal, contributing positively to your sustainability goals. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between FPM (Viton) and NBR material for a shaft seal? FPM, also known as Viton, offers superior resistance to high temperatures (up to 200 deg C) and a wider range of chemicals, oils, and fuels compared to NBR (Nitrile). NBR is a good general-purpose material but is typically limited to around 100-120 deg C and is less resistant to aggressive chemicals. Choose FPM for demanding applications. What does the ‘AS’ designation mean for this Ringseal seal? The ‘AS’ designation refers to the seal’s cross-sectional design. It features a rubber-covered outer diameter, a primary spring-loaded sealing lip to retain lubricant, and an additional, non-spring-loaded dust lip to prevent external contaminants like dust and dirt from entering the system. This design is also commonly referred to as WAS or TC by other manufacturers. What are the critical installation considerations for a 105x160x12mm shaft seal? Proper installation is key to seal performance. Ensure the shaft surface finish is smooth (Ra 0.2 to 0.8 micrometers) and free of nicks or scratches. The housing bore should also be clean and correctly sized. Lubricate both the seal’s outer diameter and the sealing lip with the system’s lubricant before installation. Use a proper installation tool to press the seal in squarely, avoiding damage to the lips. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
