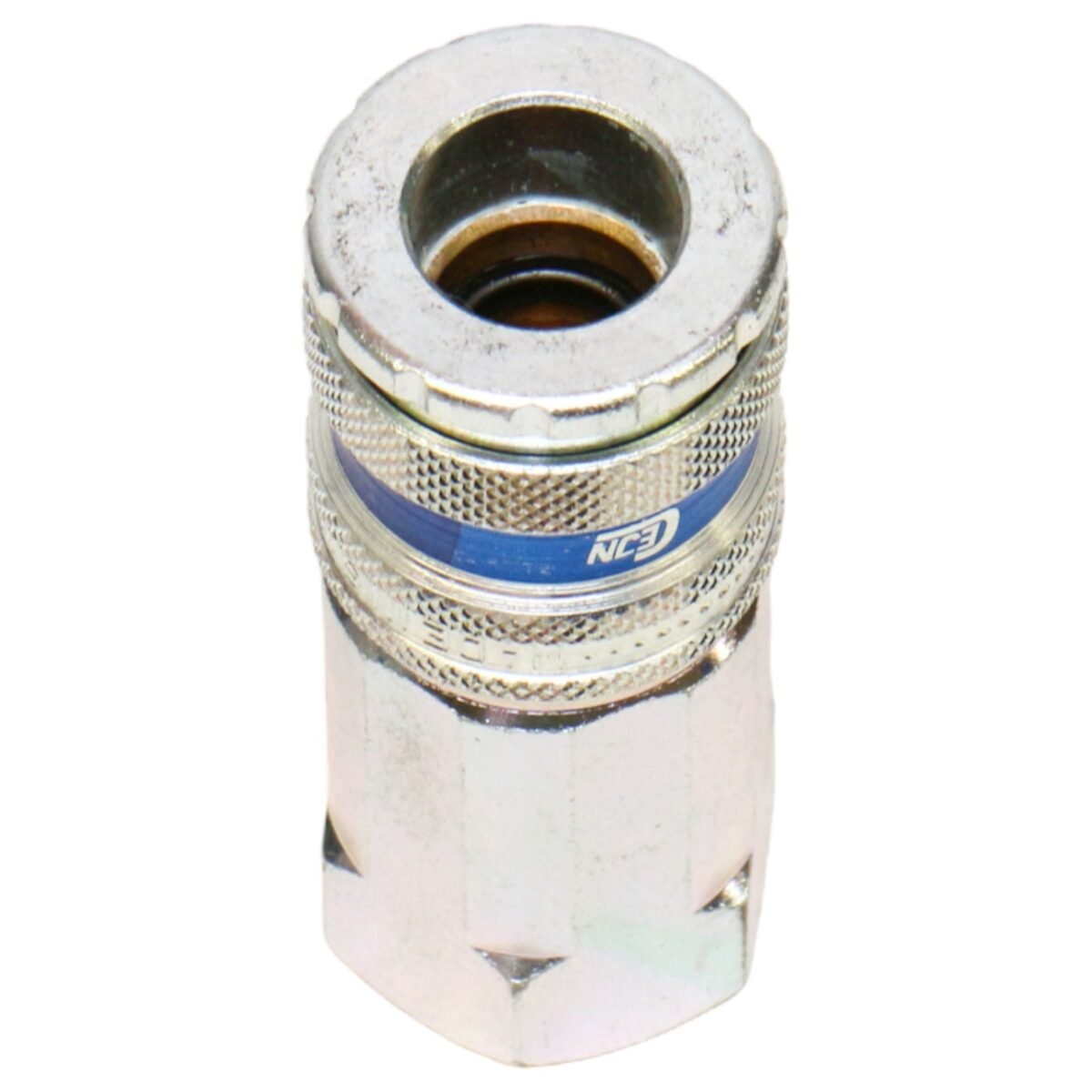

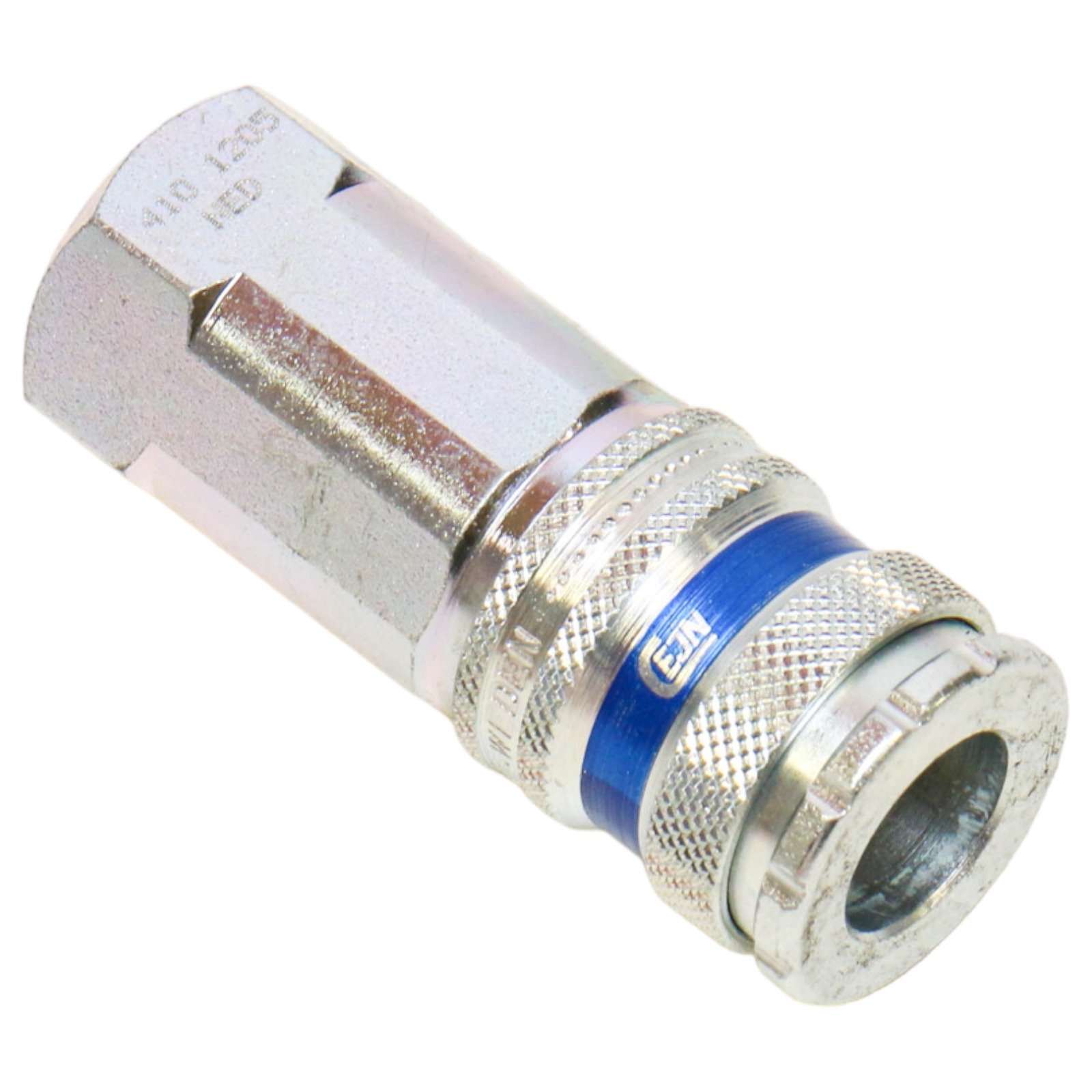

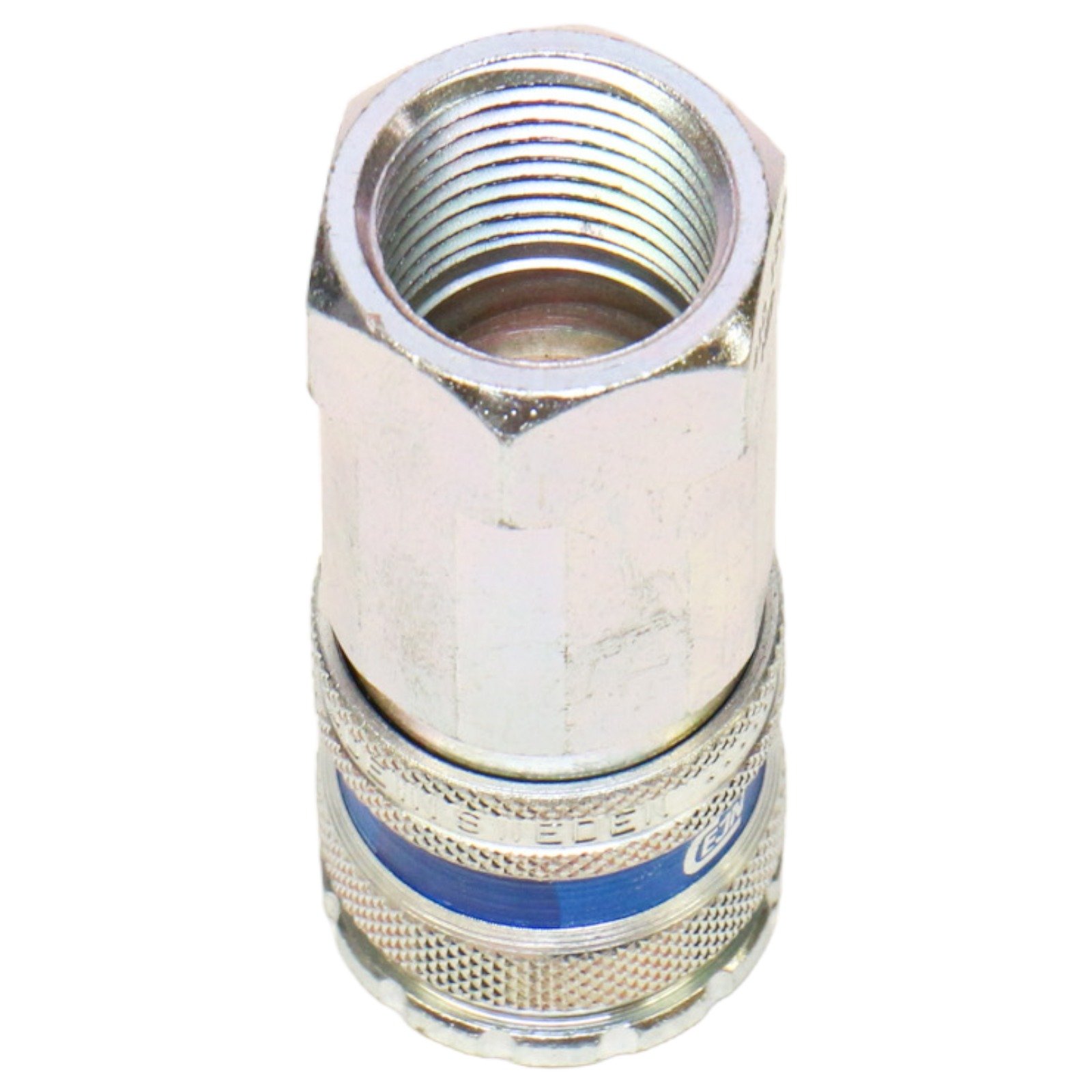

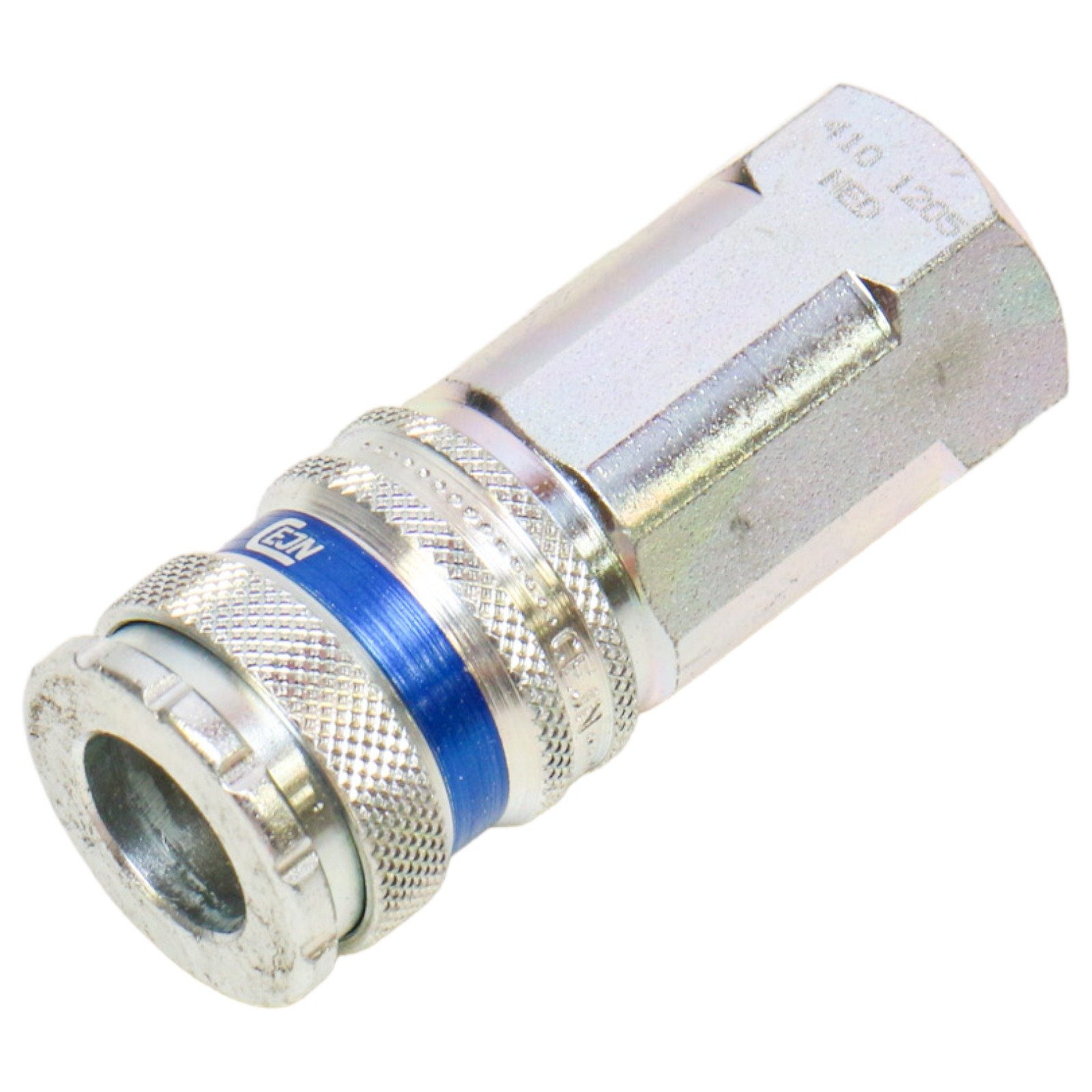

CEJN 10-410-1205
CEJN 10-410-1205
€ 40,95
1 op voorraad
1 op voorraad
Betaalmethode:
Specificatie
| Gewicht | 1,00 kg |
|---|---|
| Packing Quantity |
1 Unit(s) |
| Unit of Measure |
Unit(s) |
| Brand |
CEJN |
| Category |
Couplings |
| Description |
Quick Disconnect Coupling |
| MPN |
10-410-1205 |
| Other Notations |
10-410-1205 ,104101205 |
- Ophalen in ons magazijn
Roosendaal
Vandaag
- Standaard levering
Nederland
België
1-2 dagen
1-2 dagen
Omschrijving
104101205, Quick Disconnect Coupling, 1/2″ Female Bspp Connection, 232 Psi (16 Bar), Technical Data, Nominal Flow Diameter: 13/32″ (10.4 MM), Air Flow @ 100 Psi: 130.2 Cfm (3900 L/Min), Max. Working Pressure: 232 Psi (16 Bar), Min. Burst Pressure: 2030 Psi (140 Bar), Connection Force: 105.2 N, Temperature Range: -4°F — +212°F (-20°C — +100°C), Material Coupling: Zinc-Plated Steel/Brass, Material Nipple: Hardened Zinc-Plated Steel, Interchangeable With: Rectus 27, Tema 1700/1727, Flow Capacity Is Measured At 87 Psi (6 Bar) Inlet Pressure, And Pressure Drop At 7 Psi (0.5 Bar), 1 Pcs.<ul> <li>Item: 10-410-1205 CEJN</li> <li>Quick Disconnect Coupling</li> <li>1/2′ Female Bspp Connection</li> <li>232 Psi (16 Bar)</li> <li>Technical Data:</li> <ul> <li>Nominal Flow Diameter: 13/32′ (10.4 MM)</li> <li>Air Flow @ 100 Psi: 130.2 Cfm (3900 L/Min)</li> <li>Max. Working Pressure: 232 Psi (16 Bar)</li> <li>Min. Burst Pressure: 2030 Psi (140 Bar)</li> <li>Connection Force: 105.2 N</li> <li>Temperature Range: -4°F â +212°F (-20°C â +100°C)</li> <li>Material Coupling: Zinc-Plated Steel/Brass</li> <li>Material Nipple: Hardened Zinc-Plated Steel</li> <li>Interchangeable With: Rectus 27, Tema 1700/1727</li> <li>Flow Capacity Is Measured At 87 Psi (6 Bar) Inlet Pressure</li> <li>Pressure Drop At 7 Psi (0.5 Bar)</li> </ul> <li>1 Pcs.</li> </ul><p><strong>CEJN 10-410-1205</strong> is a high-quality industrial item available at profideals. This item is widely used in various industrial applications. It offers exceptional performance and reliability in demanding environments. Purchase CEJN 10-410-1205 at profideals to enhance your industrial operations.</p>
